TDSY3150
DISPLAY 7SEG 0.39"" SGL YLW 10DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More
The Vishay Semiconductor Opto Division TDSY3150 is a single-digit, common anode 7-segment display module from the TDS.31 series. This yellow LED display features a character height of 0.39 inches (10.00mm) and is housed in a 10-DIP package with 0.300" (7.62mm) pin spacing. It operates with a typical forward voltage of 2.4V and a test current of 20mA, achieving a millicandela rating of 3mcd. The component's dimensions are 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm). Its peak wavelength is 585nm, and it has a maximum power dissipation of 480mW. This display is commonly utilized in industrial control, instrumentation, and consumer electronics applications.
Additional Information
Series: TDS.31RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.500"" H x 0.372"" W x 0.252"" D (12.60mm x 9.45mm x 6.40mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 20mA |
| Wavelength - Peak | 585nm |
| Power Dissipation (Max) | 480mW |
Request a Quote
Clients Also Buy
TDSY3150-K
DISPLAY 7SEG 0.39"" SGL YLW 10DIP

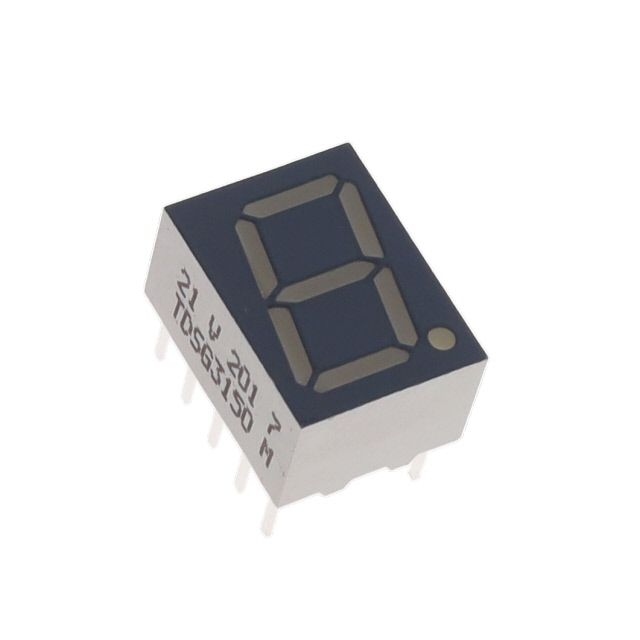

TDSG3150
DISPLAY 7SEG 0.39"" SGL GRN 10DIP

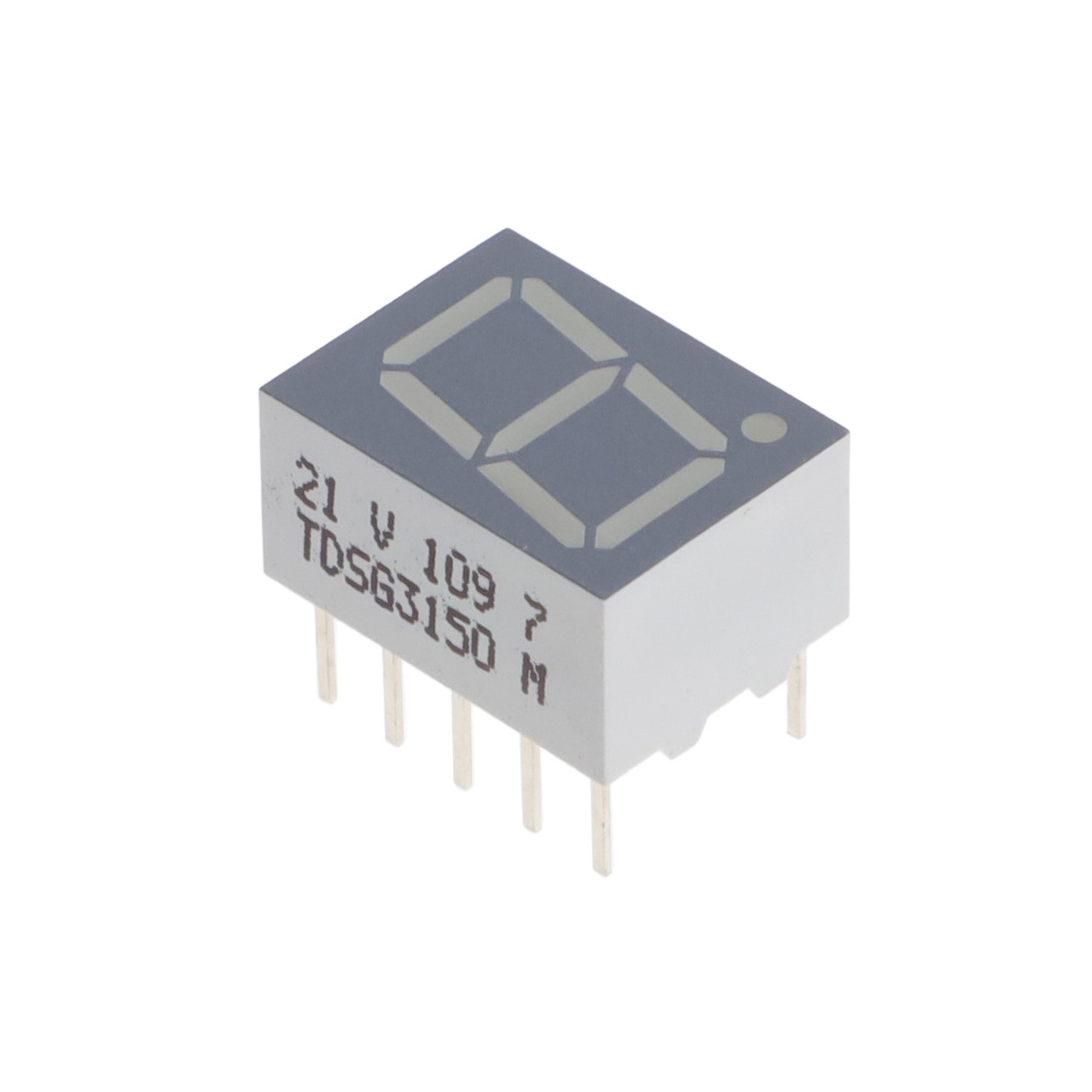

TDSG3150-M
