TDSY1150
DISPLAY LED 7-SEG 0.28"" SGL YLWManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More
Vishay Semiconductor Opto Division TDS.11 series TDSY1150 is a single-digit, 7-segment numeric display. This yellow LED component features a common anode configuration with a typical forward voltage of 2.4V and a test current of 20mA. The character height is 0.28 inches (7.00mm), with overall dimensions of 0.389 inches H x 0.291 inches W x 0.236 inches D (9.90mm x 7.40mm x 6.00mm). The millicandela rating is 3mcd with a peak wavelength of 585nm. Maximum power dissipation is 400mW. This component is suitable for applications in industrial control, instrumentation, and consumer electronics. It is supplied in bulk packaging.
Additional Information
Series: TDS.11RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.389"" H x 0.291"" W x 0.236"" D (9.90mm x 7.40mm x 6.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.28"" (7.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 20mA |
| Wavelength - Peak | 585nm |
| Power Dissipation (Max) | 400mW |
Request a Quote
Clients Also Buy

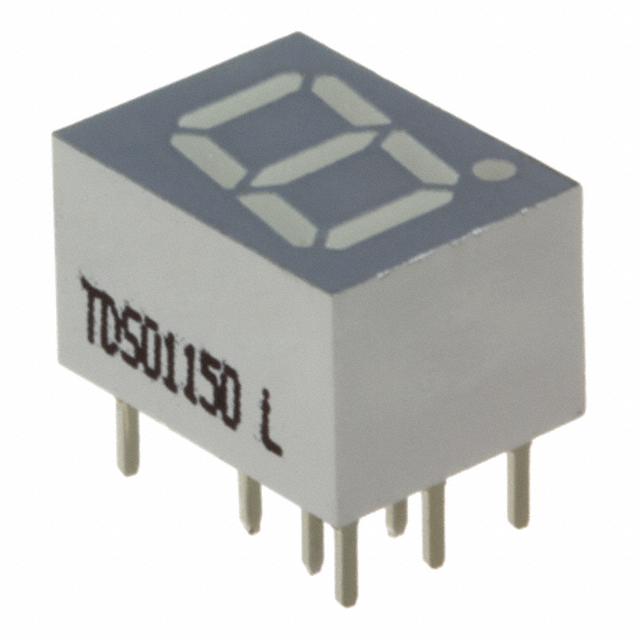

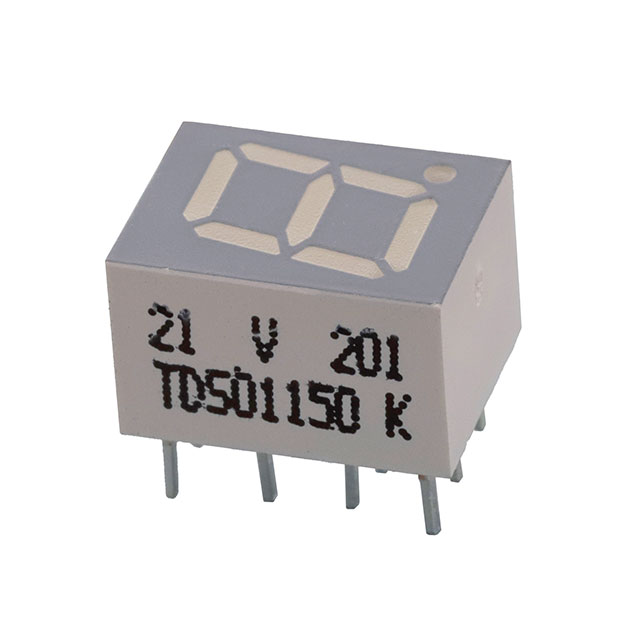

TDSO1160-K
