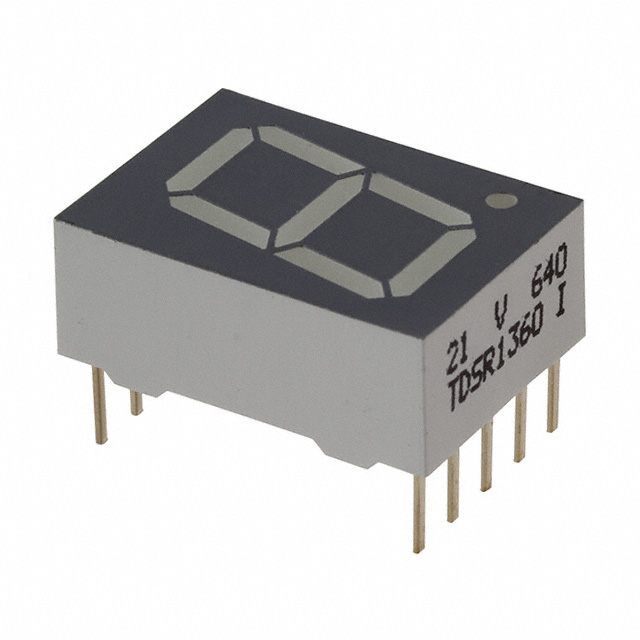

TDSR1360
DISPLAY 7SEG 0.51"" SGL RED 10DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.8V 1mA 0.689"" H x 0.482"" W x 0.252"" D (17.50mm x 12.25mm x 6.40mm) 10-DIP (0.600"", 15.24mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.482"" W x 0.252"" D (17.50mm x 12.25mm x 6.40mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.6mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.51"" (13.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 1mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 185mW |
