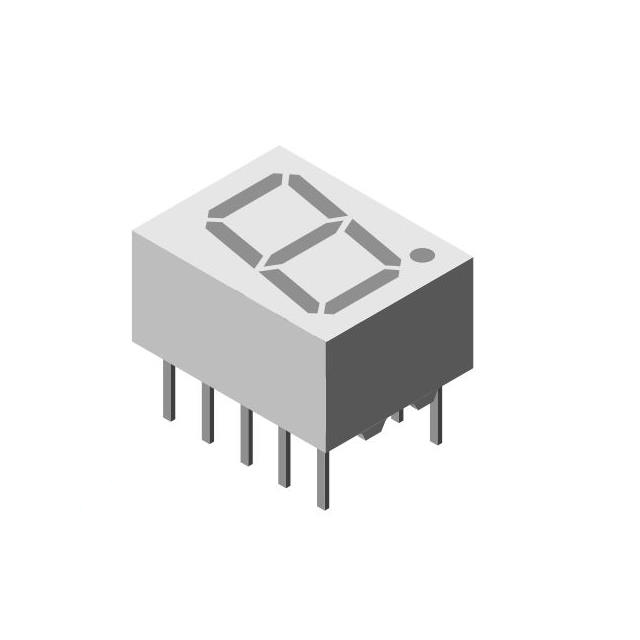

TDSR1050-IK
DISPLAY 7SEG 0.39"" SGL RED 10DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 1mA 0.500"" H x 0.372"" W x 0.252"" D (12.60mm x 9.45mm x 6.40mm) 10-DIP (0.300"", 7.62mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.500"" H x 0.372"" W x 0.252"" D (12.60mm x 9.45mm x 6.40mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.6mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 1mA |
| Wavelength - Peak | 650nm |
| Power Dissipation (Max) | 185mW |
