TDSL5150-GH
DISPLAY 7SEG 0.51"" SGL RED 10DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More

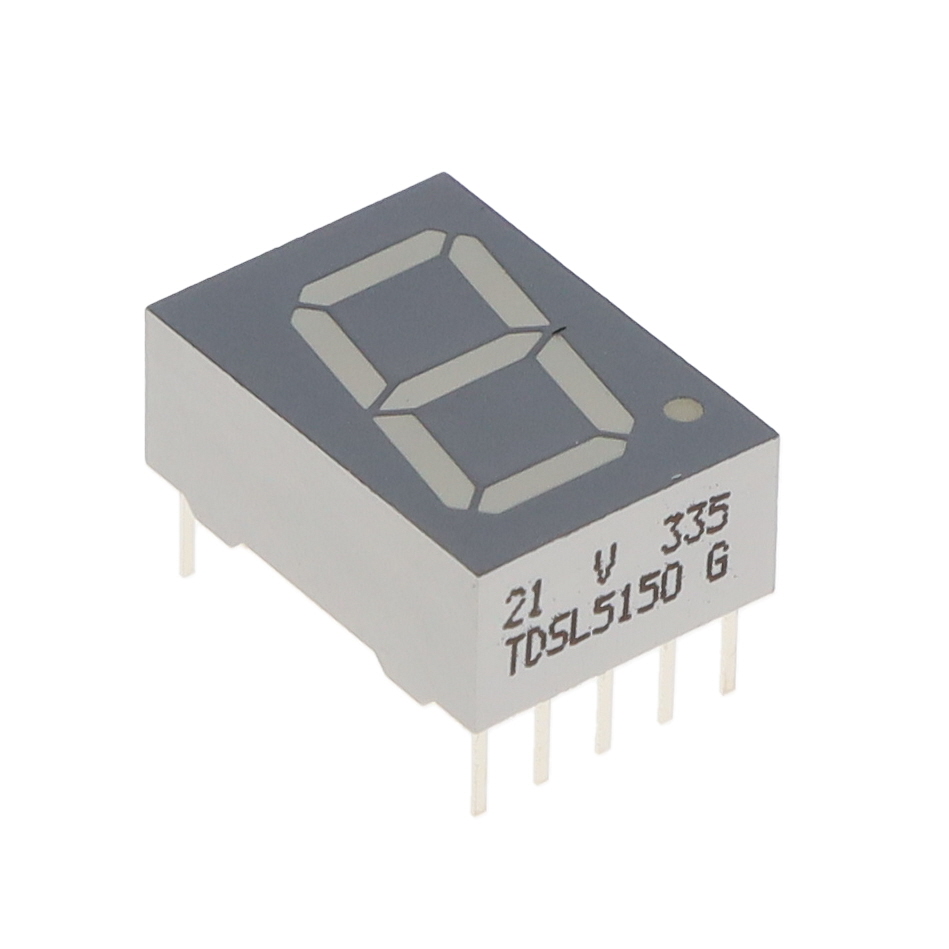

The Vishay Semiconductor Opto Division TDSL5150-GH is a single-digit, 7-segment display from the TDSL51.0 series. This red LED component features a character height of 0.51 inches (13.00mm) and operates with a typical forward voltage of 1.8V at a test current of 2mA, producing 1.4mcd luminous intensity. The display is configured with a common anode pinout and has a peak wavelength of 635nm. Its package is a 10-DIP with a 0.600-inch (15.24mm) lead spacing. The overall dimensions are 0.689 inches high by 0.482 inches wide by 0.252 inches deep (17.50mm x 12.25mm x 6.40mm). This component is suitable for applications in industrial control systems, instrumentation, and consumer electronics. The maximum power dissipation is 320mW.
Additional Information
Series: TDSL51.0RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.482"" W x 0.252"" D (17.50mm x 12.25mm x 6.40mm) |
| Number of Characters | 1 |
| Millicandela Rating | 1.4mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.51"" (13.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 2mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 320mW |
Request a Quote
Clients Also Buy
TDSL5150-FG
DISPLAY 7SEG 0.51"" SGL RED 10DIP

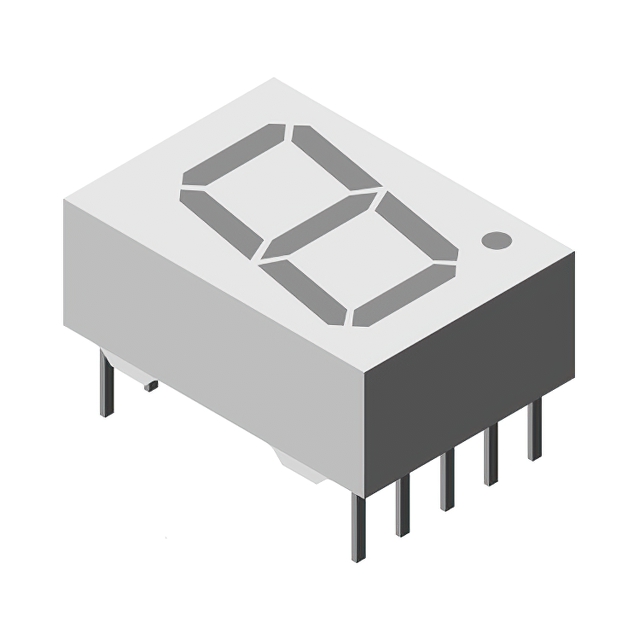

TDSL5160-GH
