TDSL3150-G
DISPLAY 7SEG 0.39"" SGL RED 10DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More

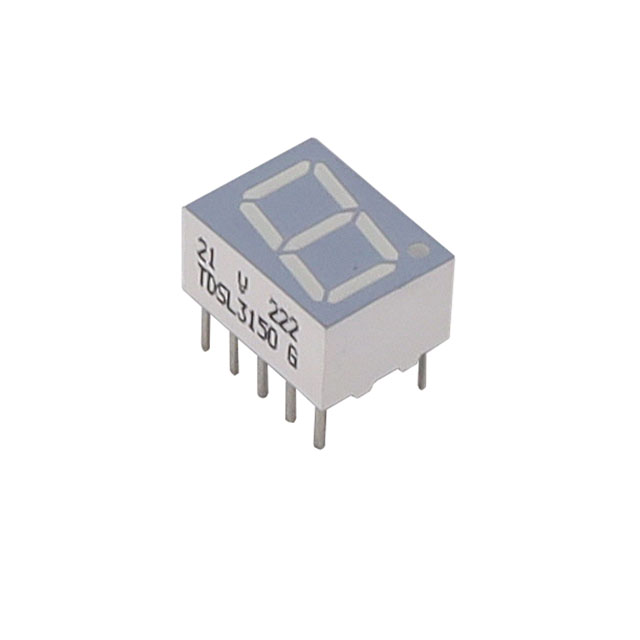

The Vishay Semiconductor Opto Division TDSL3150-G is a single-digit, 7-segment display from the TDSL31.0 series. This red LED display features a character height of 0.39 inches (10.00mm) and operates with a typical forward voltage of 1.8V and a test current of 2mA. It is designed with a common anode configuration and has a peak wavelength of 635nm. The display's dimensions are 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm), and it is housed in a 10-DIP package with a 0.300" (7.62mm) pin pitch. The maximum power dissipation is 320mW, with a typical luminous intensity of 0.90mcd. This component is suitable for various industrial applications including instrumentation and control panels.
Additional Information
Series: TDSL31.0RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.500"" H x 0.372"" W x 0.252"" D (12.60mm x 9.45mm x 6.40mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.90mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 2mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 320mW |
