TDSG5150-MN
DISPLAY 7SEG 0.51"" SGL GRN 10DIPManufacturer: Vishay Semiconductor Opto Division
Categories: LED Character and Numeric
Quality Control: Learn More
Vishay Semiconductor Opto Division TDS.51 series TDSG5150-MN is a single-digit, 7-segment display module featuring a green LED character and numeric output. This component utilizes a common anode configuration and operates with a typical forward voltage of 2.4V at 20mA test current, providing a luminous intensity of 14mcd. The character height is 0.51 inches (13.00mm), and the module dimensions are 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm). Packaged in a 10-DIP (0.600", 15.24mm) format, this display is suitable for applications in industrial controls, instrumentation, and consumer electronics. The maximum power dissipation is rated at 550mW.
Additional Information
Series: TDS.51RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.482"" W x 0.252"" D (17.50mm x 12.25mm x 6.40mm) |
| Number of Characters | 1 |
| Millicandela Rating | 14mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.51"" (13.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 550mW |
Request a Quote
Clients Also Buy
TDSY5150
DISPLAY 7SEG 0.51"" SGL YLW 10DIP

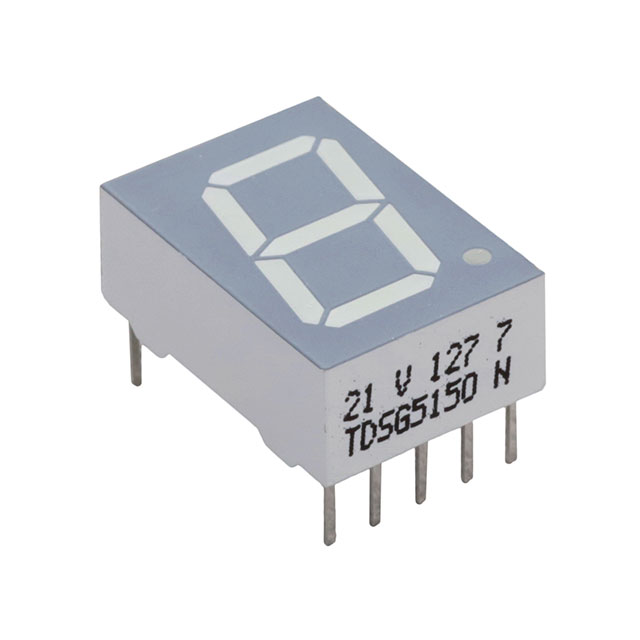

TDSG5150
DISPLAY 7SEG 0.51"" SGL GRN 10DIP

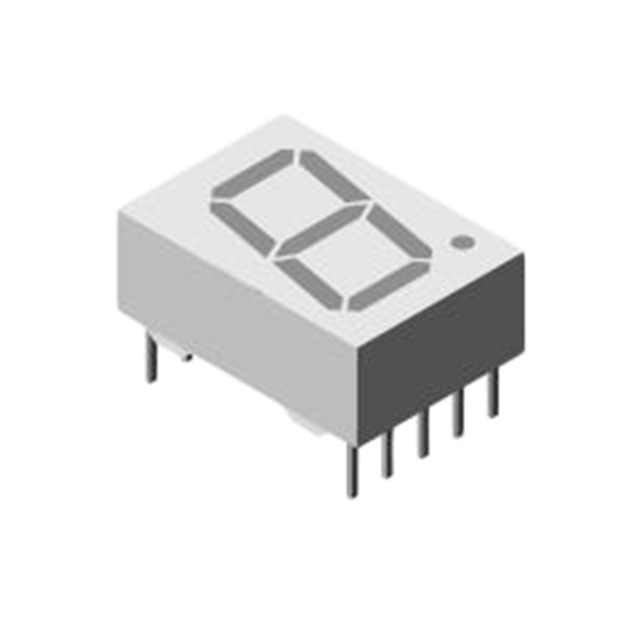

TDSG5150-N
