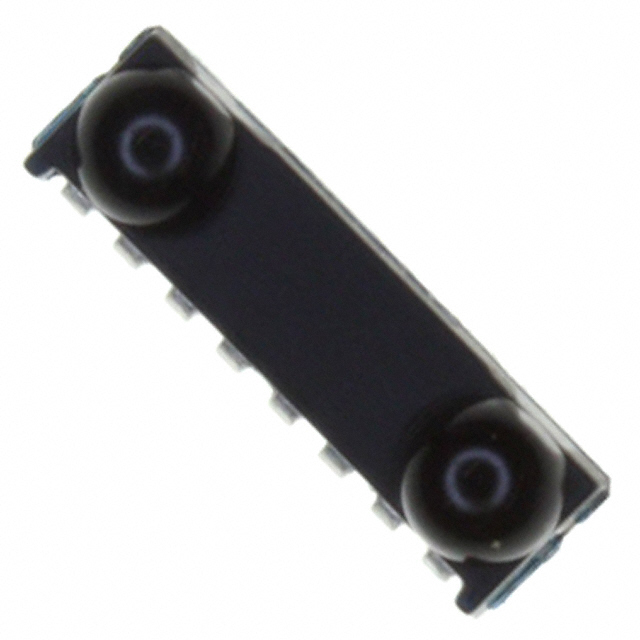

TFDU6300-TT3

TXRX IRDA 4MBIT 2.5MM TOP 8-SMD

Manufacturer: Vishay Semiconductor Opto Division

Categories: IrDA Transceiver Modules

Quality Control: Learn More

The Vishay Semiconductor Opto Division TFDU6300-TT3 is a high-speed IrDA transceiver module supporting the 4 Mbits/s FIR standard (IrPHY 1.4). This compact, top-view 8-SMD component features a low idle current of 1.8 mA typical at 25°C and a link range of up to 70 cm in low power mode. Operating within a supply voltage of 2.4 V to 3.6 V, the TFDU6300-TT3 is designed for reliable infrared data communication. Its 2.5mm height and 8.5mm x 3.1mm footprint make it suitable for integration into space-constrained applications. Industries utilizing this component include industrial automation, medical devices, and consumer electronics where wireless, point-to-point data transfer is required. The TFDU6300-TT3 is supplied in Tape & Reel packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
OrientationTop View
Operating Temperature-25°C ~ 85°C
Size8.5mm x 3.1mm x 2.5mm
Data Rate4Mbs (FIR)
StandardsIrPHY 1.4
Link Range, Low Power70cm
Voltage - Supply2.4 V ~ 3.6 V
Idle Current, Typ @ 25°C1.8 mA
