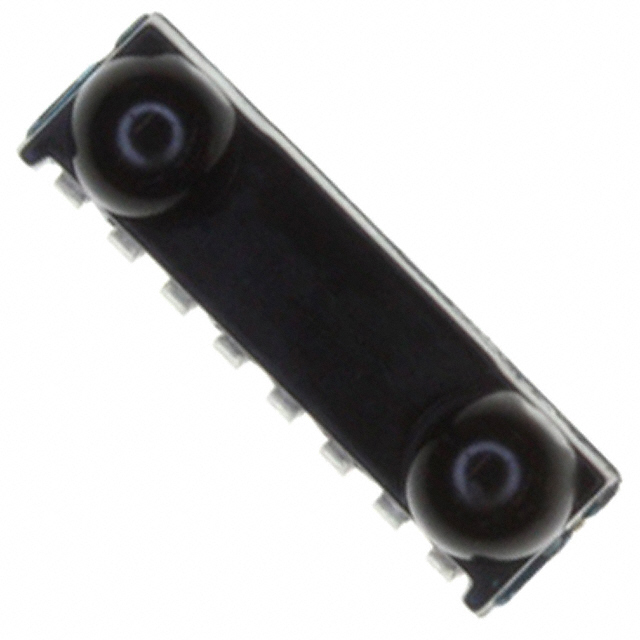

productimage

TFDU4300-TT1

TXRX IRDA 115.2KBIT 2.5MM 8-SMD

Manufacturer: Vishay Semiconductor Opto Division

Categories: IrDA Transceiver Modules

Quality Control: Learn More

Vishay Semiconductor Opto Division TFDU4300-TT1 is an IrDA transceiver module supporting the 115.2kbs (SIR) data rate, compliant with the IrPHY 1.0 standard. This top-view, 8-SMD component features a compact 8.5mm x 2.9mm x 2.5mm footprint. It operates across a voltage range of 2.4V to 5.5V, with a typical idle current of 75 µA at 25°C. The TFDU4300-TT1 provides a low-power link range of up to 70cm. It includes a shutdown function and operates within an ambient temperature range of -30°C to 85°C. This Vishay Semiconductor Opto Division transceiver is commonly utilized in industrial automation, medical devices, and consumer electronics for short-range, point-to-point data communication. The component is supplied in Tape & Reel (TR) packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
OrientationTop View
Operating Temperature-30°C ~ 85°C
Size8.5mm x 2.9mm x 2.5mm
Data Rate115.2kbs (SIR)
StandardsIrPHY 1.0
Link Range, Low Power70cm
ShutdownYes
Voltage - Supply2.4 V ~ 5.5 V
Idle Current, Typ @ 25°C75 µA
