GMF05LC-HS3-GS08
TVS DIODE 5VWM 12.5VC LLP75-6AManufacturer: Vishay General Semiconductor - Diodes Division
Categories: TVS Diodes
Quality Control: Learn More

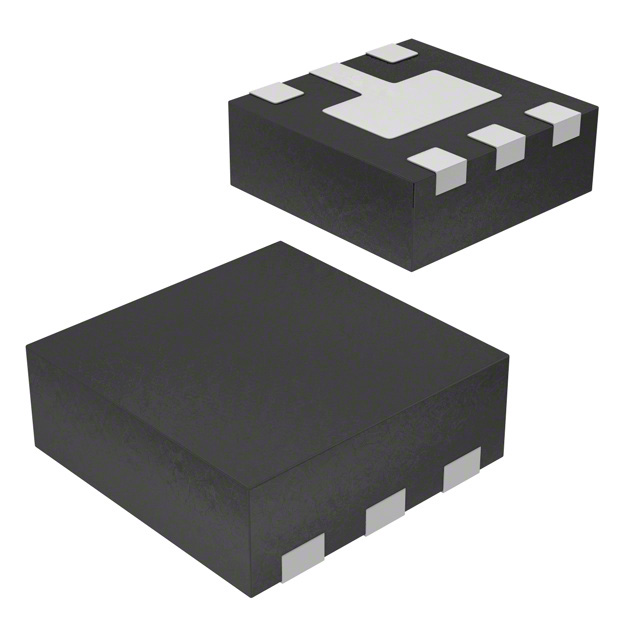

Vishay General Semiconductor - Diodes Division GMF05LC-HS3-GS08 is a unidirectional transient voltage suppressor (TVS) diode designed for surface mount applications. This component features a 5V reverse standoff voltage and a 6V minimum breakdown voltage. It offers a peak pulse current rating of 5A (8/20µs) and a clamping voltage of 12.5V at 5A. The device has a typical capacitance of 43pF at 1MHz and a peak pulse power of 70W. Operating across a temperature range of -55°C to 125°C, it is housed in a 6-WFDFN exposed pad package, designated as LLP75-6A by the supplier. This TVS diode is suitable for general-purpose applications and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 43pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Min) |
| Supplier Device Package | LLP75-6A |
| Unidirectional Channels | 5 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12.5V |
| Power - Peak Pulse | 70W |
| Power Line Protection | No |
