GL15-HT3-GS08
TVS DIODE 15VWM 33VC LLP75-3BManufacturer: Vishay General Semiconductor - Diodes Division
Categories: TVS Diodes
Quality Control: Learn More

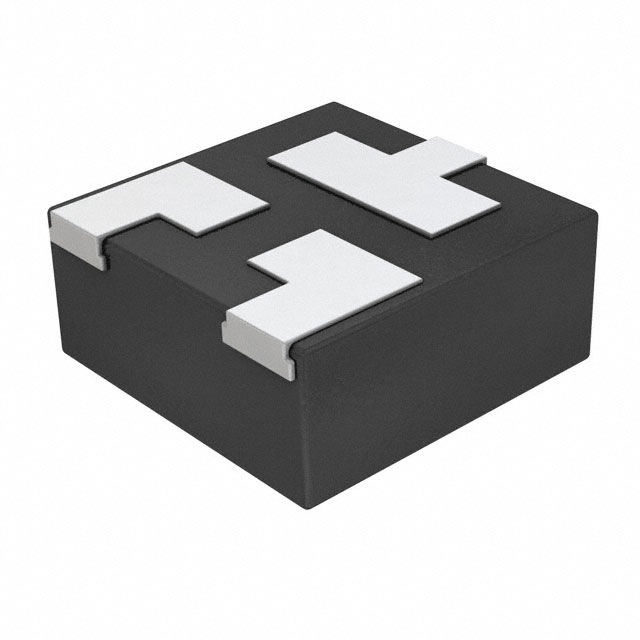

Vishay General Semiconductor - Diodes Division GL15-HT3-GS08 is a unidirectional Transient Voltage Suppressor (TVS) diode. This surface mount device, packaged in an LLP75-3B (3-WDFN), offers a reverse standoff voltage of 15V and a breakdown voltage of 16.7V (minimum). It features a clamping voltage of 33V at a peak pulse current of 10A (8/20µs), providing 300W of peak pulse power. The device has a junction temperature range of -55°C to 125°C and exhibits a capacitance of 5pF at 1MHz. This component is suitable for general-purpose applications, commonly found in automotive and industrial electronics for overvoltage protection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 3-WDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 15V |
| Supplier Device Package | LLP75-3B |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 33V |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
