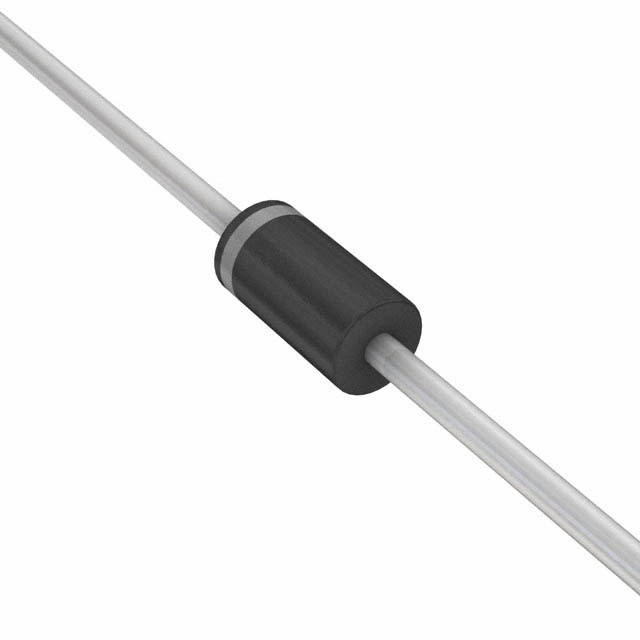

1N4743A-TAP
DIODE ZENER 13V 1.3W DO41Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Zener Diodes
Quality Control: Learn More
Zener Diode 13 V 1.3 W ±5% Through Hole DO-204AL (DO-41)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 13 V |
| Impedance (Max) (Zzt) | 10 Ohms |
| Supplier Device Package | DO-204AL (DO-41) |
| Grade | Automotive |
| Power - Max | 1.3 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 9.9 V |
| Qualification | AEC-Q101 |
