VSSAF512-M3/H
DIODE SCHOTTKY 120V 5A DO221ACManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Diode 120 V 5A Surface Mount DO-221AC (SlimSMA)
Additional Information
Series: TMBS®, SlimSMA™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 360pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Voltage - Forward (Vf) (Max) @ If | 880 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 400 µA @ 120 V |
Request a Quote
Clients Also Buy

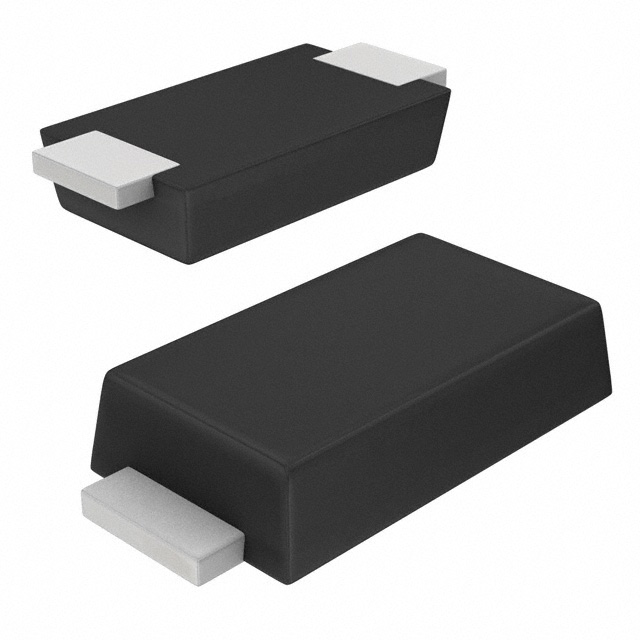

VSSAF5N50-M3/6B
DIODE SCHOTTKY 50V 3A DO221AC
VSSAF515-M3/H
DIODE SCHOTTKY 150V 5A DO221AC

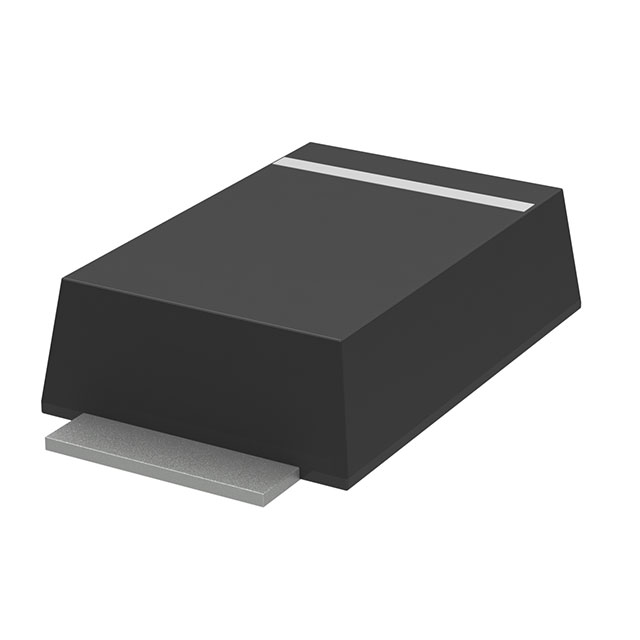

VSSAF5M6-M3/H
