VS-C16CP07L-M3
DIODE SIL CARB 650V 16A TO220ACManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

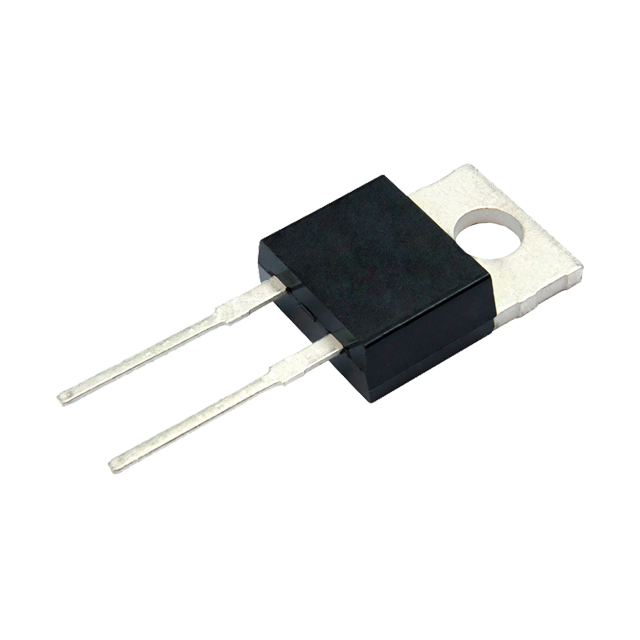

Vishay General Semiconductor - Diodes Division VS-C16CP07L-M3 is a Silicon Carbide (SiC) Schottky diode featuring a 650V reverse voltage and 16A average rectified current capability. This through-hole component, packaged in a TO-220AC, offers a forward voltage drop of 1.7V at its maximum rated current. Its fast recovery time, less than 500ns for currents greater than 200mA, makes it suitable for high-frequency applications. The device exhibits a reverse leakage current of 85 µA at 650V and has a junction capacitance of 320pF at 1V and 1MHz. With an operating junction temperature range of -55°C to 175°C, it is engineered for demanding power electronics systems in sectors such as industrial power supplies, electric vehicle charging, and solar inverters.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 320pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 16A |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 16 A |
| Current - Reverse Leakage @ Vr | 85 µA @ 650 V |
