VS-8EWF10S-M3
DIODE GEN PURP 1KV 8A DPAKManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

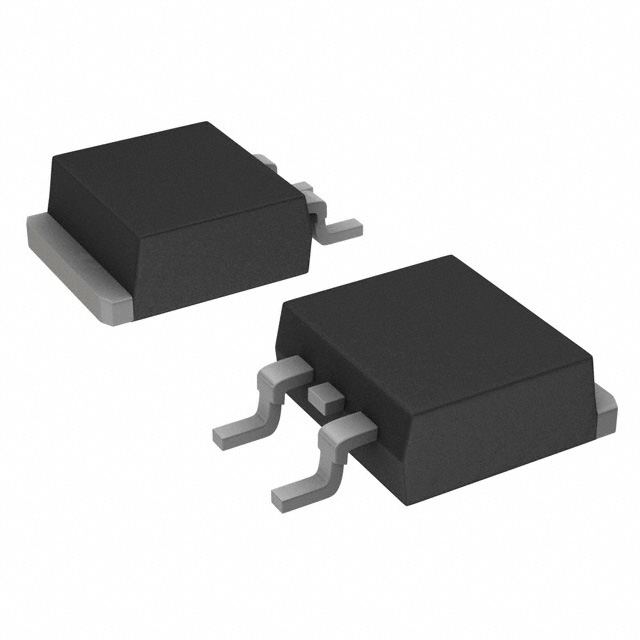

Diode 1000 V 8A Surface Mount TO-252AA (DPAK)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 270 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | TO-252AA (DPAK) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 8 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1000 V |
