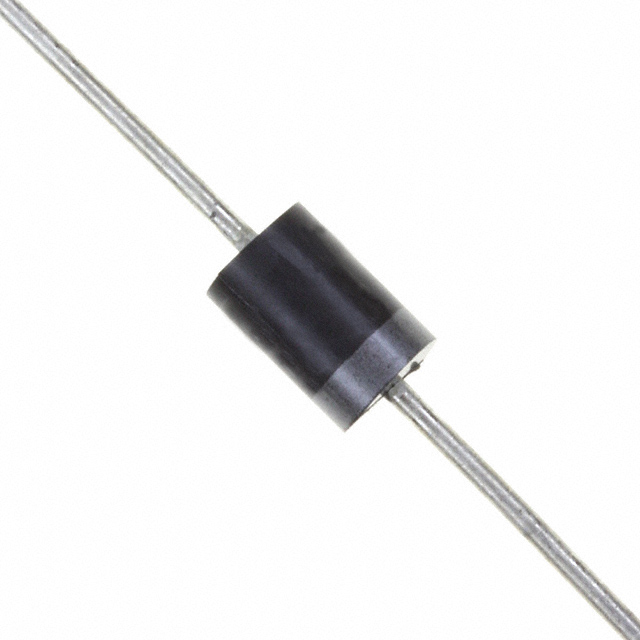

VS-80SQ045
DIODE SCHOTTKY 45V 8A DO204ARManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
The Vishay General Semiconductor - Diodes Division VS-80SQ045 is an 8A Schottky diode designed for efficient power rectification. Featuring a forward voltage drop of 530mV at 8A and a maximum reverse voltage of 45V, this component exhibits a low reverse leakage current of 2mA at its rated voltage. The VS-80SQ045 is packaged in a DO-204AR (Axial) through-hole package, suitable for demanding thermal environments with an operating junction temperature range of -55°C to 175°C. Its fast recovery characteristics contribute to high-frequency switching applications. This device is commonly utilized in power supplies, automotive electronics, and industrial control systems where efficient rectification and low forward voltage are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AR, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | DO-204AR |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 8 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 45 V |
