VS-3C05ET12S2L-M3
5A 1200V SIC ZERO QRR SINGLE TJMManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

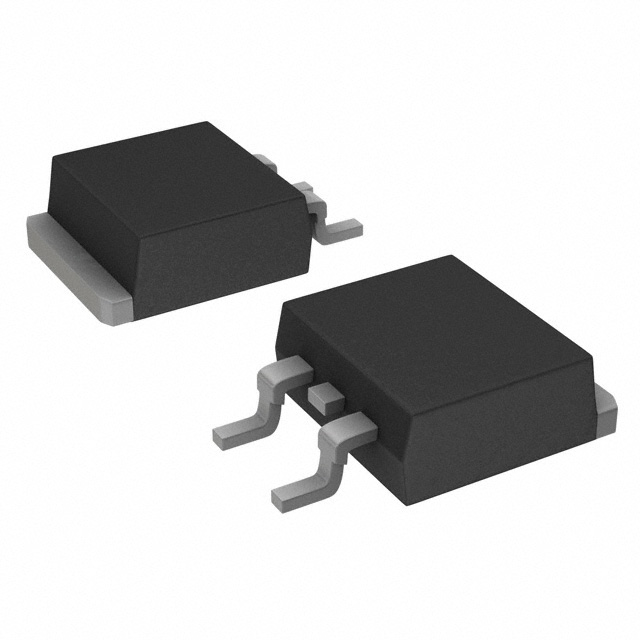

Diode 1200 V 5A Surface Mount TO-263AB (D2PAK)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 20pF @ 800V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | TO-263AB (D2PAK) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 5 A |
| Current - Reverse Leakage @ Vr | 30 µA @ 1200 V |
| Qualification | - |
