VS-31DQ10GTR
DIODE SCHOTTKY 100V 3.3A C-16Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

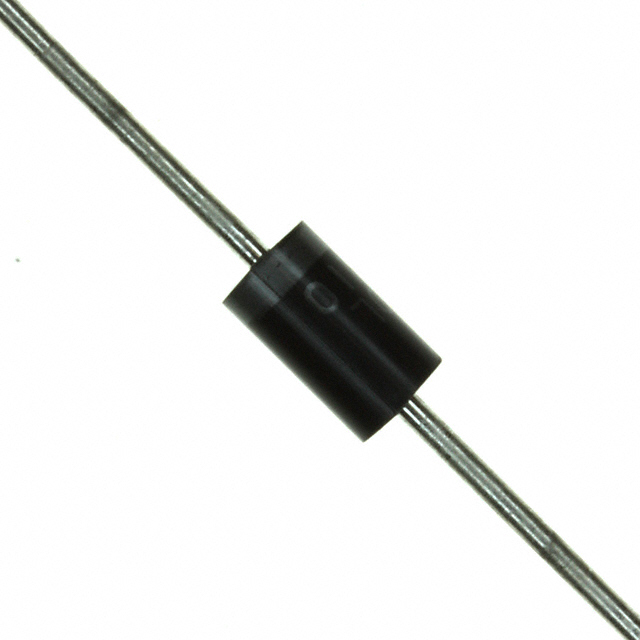

Vishay General Semiconductor - Diodes Division VS-31DQ10GTR is a Schottky rectifier with a 100V reverse voltage rating and 3.3A average rectified current. This component features a low forward voltage drop of 850mV at 3A and a reverse leakage current of 100µA at 100V. The junction capacitance is 110pF at 5V and 1MHz. Designed for through-hole mounting in a DO-201AD (C-16) axial package, it operates across a temperature range of -40°C to 150°C. The VS-31DQ10GTR is supplied in Tape & Reel packaging and is suitable for applications requiring efficient power rectification, including power supplies, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 110pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 3.3A |
| Supplier Device Package | C-16 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V |
