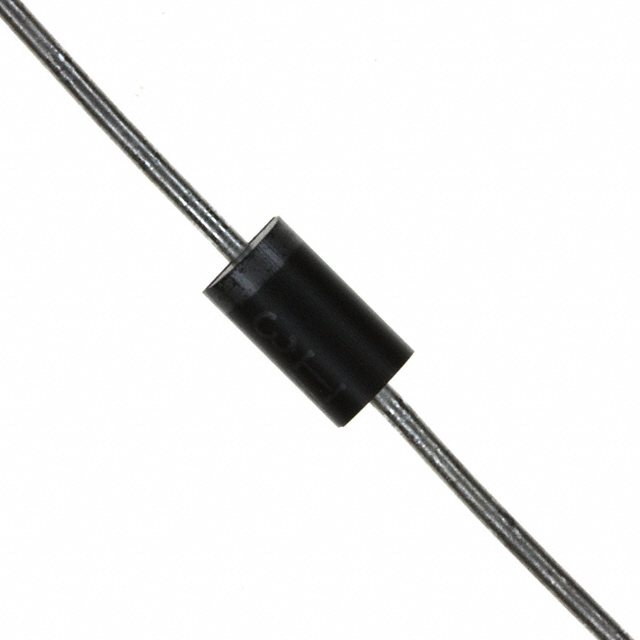

VS-31DQ09
DIODE SCHOTTKY 90V 3.3A C16Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-31DQ09 is a Schottky rectifier with a 90V reverse voltage rating and an average rectified forward current of 3.3A. This through-hole component, housed in a DO-201AD (C-16) package, features a low forward voltage drop of 850mV at 3A. The VS-31DQ09 exhibits a reverse leakage current of 1mA at its maximum reverse voltage of 90V and operates across a junction temperature range of -40°C to 150°C. Its fast recovery characteristic is suitable for applications requiring efficient switching. This device is commonly utilized in power supply units, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3.3A |
| Supplier Device Package | C-16 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 90 V |
