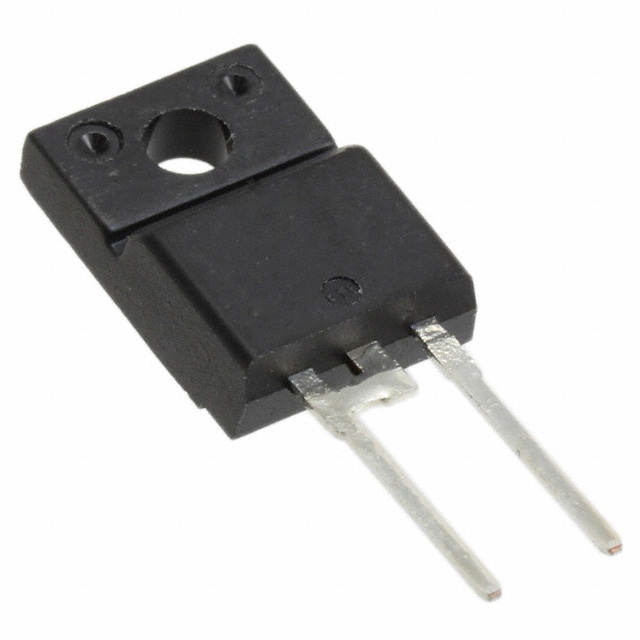

VS-20ETF06FPPBF
DIODE GP 600V 20A TO220ACFPManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-20ETF06FPPBF is a 600V, 20A general-purpose diode. This through-hole component features a fast recovery time of 160 ns, with a forward voltage drop of 1.3V at 20A. The reverse leakage current is rated at 100 µA at 600V. Housed in a TO-220AC Full Pack package, this diode operates across a junction temperature range of -40°C to 150°C. It is commonly employed in power supply rectification and switching applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 160 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | TO-220AC Full Pack |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 20 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 600 V |
