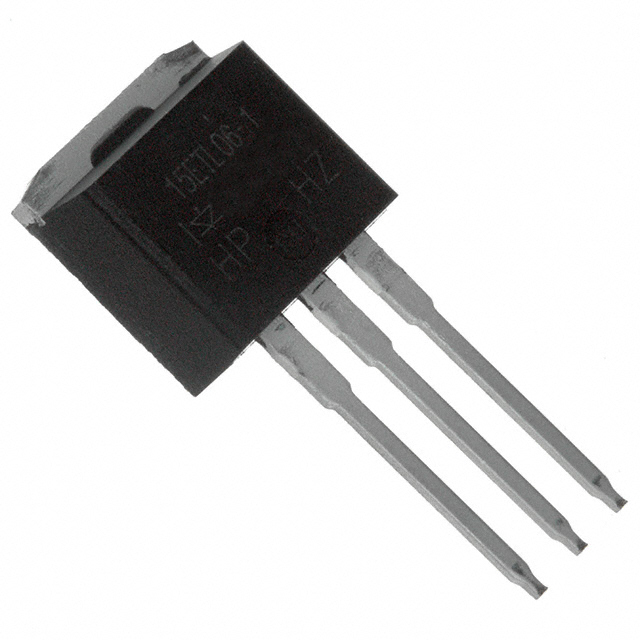

VS-15ETL06-1PBF
DIODE GEN PURP 600V 15A TO262-3Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
The Vishay General Semiconductor - Diodes Division VS-15ETL06-1PBF is a FRED Pt® series fast recovery diode. This component offers a 600V reverse voltage and a 15A average rectified forward current. It features a low forward voltage drop of 1.05V at 15A and a reverse leakage current of 10 µA at 600V. The reverse recovery time (trr) is rated at 270 ns, classifying it as a fast recovery diode. The device is housed in a TO-262-3 package, suitable for through-hole mounting. Typical applications for this diode include power supply circuits, motor control, and industrial power systems.
Additional Information
Series: FRED Pt®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 270 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-262-3 |
| Operating Temperature - Junction | - |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
