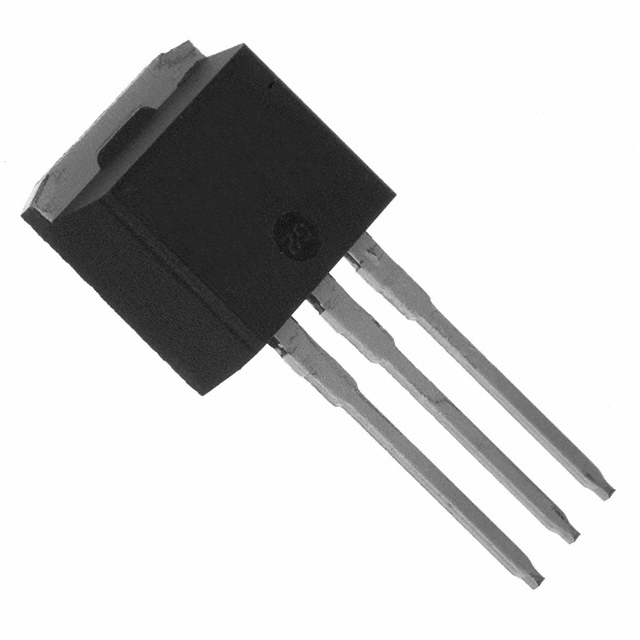

VS-15ETH06-1PBF
DIODE GEN PURP 600V 15A TO262AAManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-15ETH06-1PBF FRED Pt® series diode. This fast recovery rectifier features a 600V reverse voltage and a 15A average rectified current. It exhibits a maximum forward voltage of 2.2V at 15A and a reverse leakage of 40µA at 600V. With a reverse recovery time of 29ns, this component is suitable for applications requiring efficient switching. The VS-15ETH06-1PBF is housed in a TO-262AA package, designed for through-hole mounting. Its AEC-Q101 qualification and automotive grade make it suitable for demanding automotive applications, as well as industrial power supplies and motor control systems. Operating junction temperature ranges from -65°C to 175°C.
Additional Information
Series: FRED Pt®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 29 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | TO-262AA |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 15 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 600 V |
| Qualification | AEC-Q101 |
