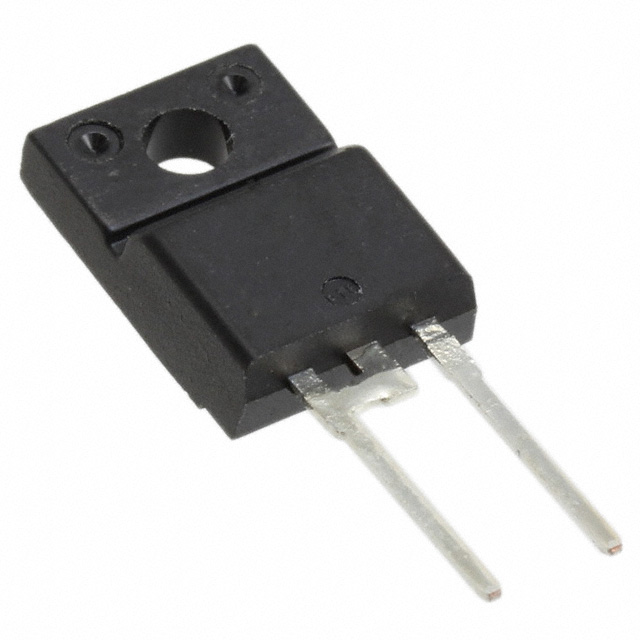

VS-10ETS08FPPBF
DIODE GP 800V 10A TO220ACFPManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-10ETS08FPPBF is a standard recovery rectifier diode with a repetitive peak reverse voltage of 800V. This through-hole component features an average rectified forward current of 10A and a low reverse leakage of 50 µA at its maximum reverse voltage. The forward voltage drop is 1.1V at 10A. Packaged in a TO-220AC Full Pack configuration, it operates across a junction temperature range of -40°C to 150°C. The VS-10ETS08FPPBF is suitable for applications in power supplies, motor control, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-220AC Full Pack |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 10 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 800 V |
