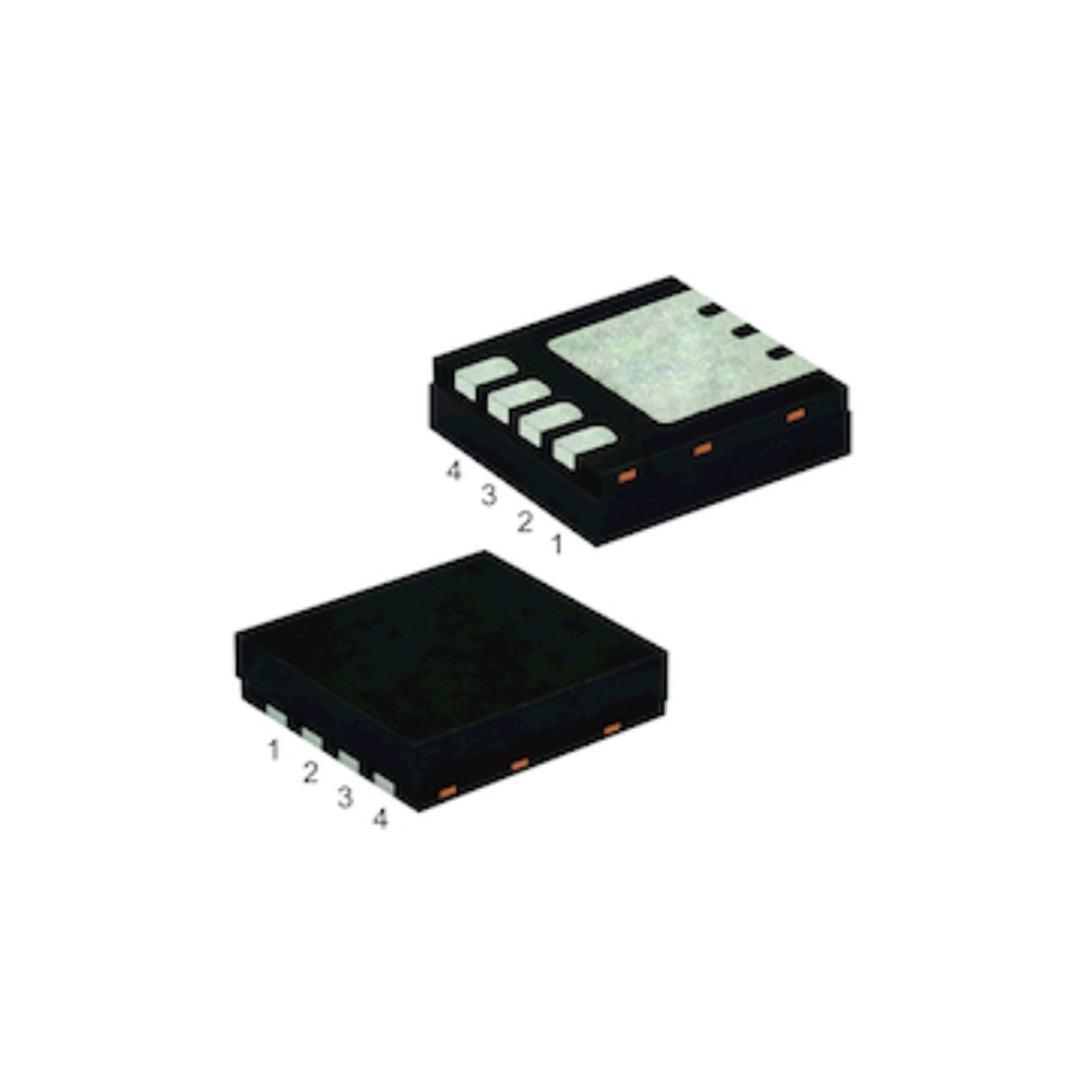

V9N3M103HM3/I
9A, 100V DFN33A TMBS RECTManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Diode 100 V 2.8A Surface Mount DFN33A
Additional Information
Series: TMBS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 1100pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2.8A |
| Supplier Device Package | DFN33A |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 710 mV @ 9 A |
| Current - Reverse Leakage @ Vr | 220 µA @ 100 V |
| Qualification | AEC-Q101 |
