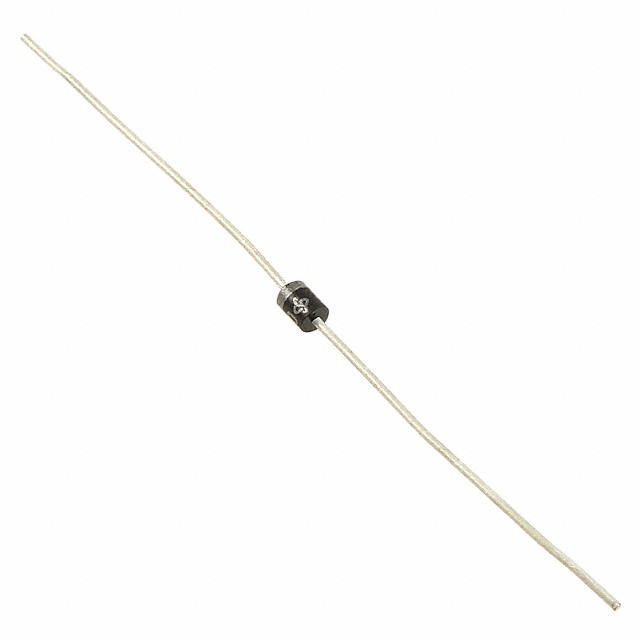

UG06B-E3/54
DIODE GEN PURP 100V 600MA MPG06Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division UG06B-E3-54 is a general-purpose rectifying diode with a maximum repetitive reverse voltage of 100V and an average rectified forward current of 600mA. This device features a low forward voltage drop of 950mV at 600mA and a reverse leakage current of 5µA at 100V. The UG06B-E3-54 has a junction capacitance of 9pF at 4V and 1MHz. It is designed for fast recovery applications, with a typical reverse recovery time of 25ns. The diode operates over a junction temperature range of -55°C to 150°C and is housed in an axial MPG06 package for through-hole mounting. This component is suitable for use in power supplies, general rectification, and switching applications across various industrial and consumer electronics sectors. The part is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | MPG06, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 9pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 600mA |
| Supplier Device Package | MPG06 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 600 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
