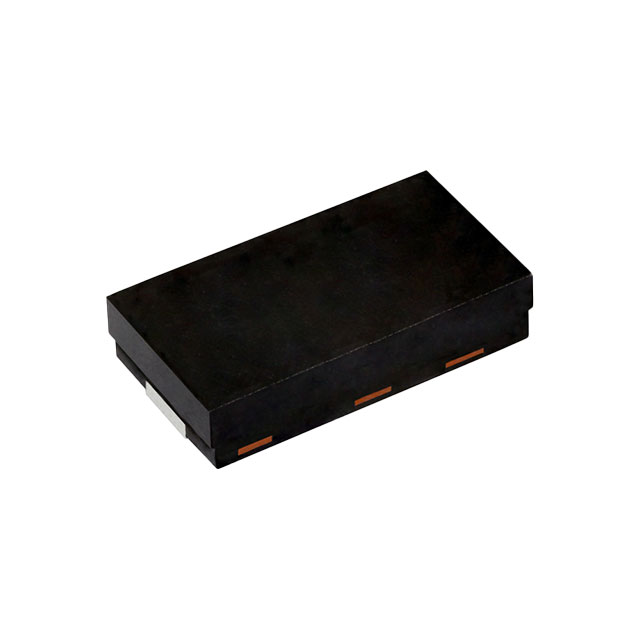

SE20NJ-M3/I
DIODE GEN PURP 600V 2A DFN3820AManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Diode 600 V 2A Surface Mount, Wettable Flank DFN3820A
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 2-VDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.2 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | DFN3820A |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Qualification | AEC-Q101 |
Request a Quote
