SE10PDHM3/85A
DIODE GEN PURP 200V 1A DO220AAManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Diode 200 V 1A Surface Mount DO-220AA (SMP)
Additional Information
Series: eSMP®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-220AA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 780 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-220AA (SMP) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
SS2PH10HM3_A/H
DIODE SCHOTTKY 100V 2A DO220AA

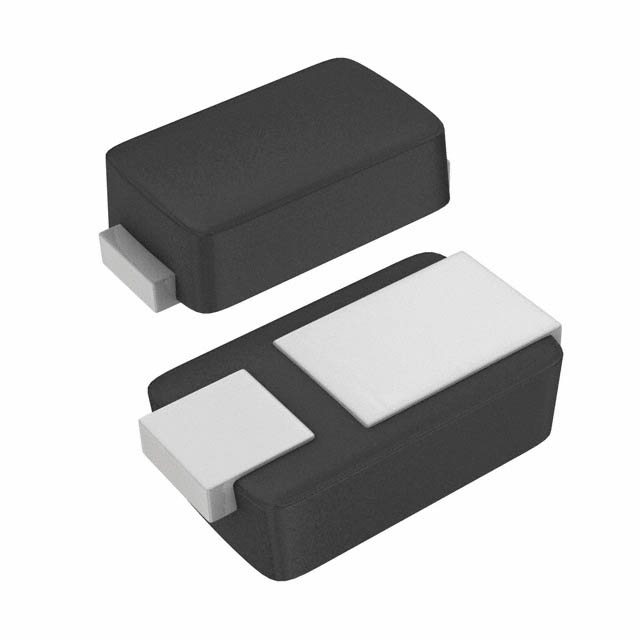

V1P6HM3/H
