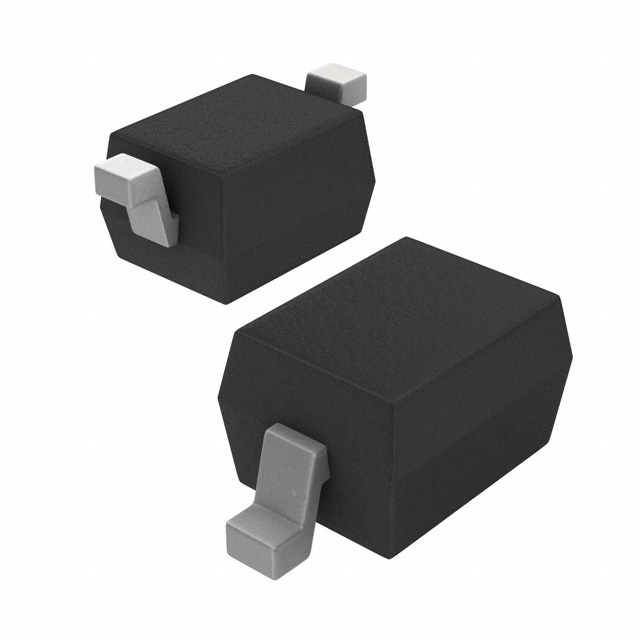

SD103CWS-HG3-08
DIODE SCHOTTKY 20V 350MA SOD323Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Diode 20 V 350mA Surface Mount SOD-323
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 50pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 350mA |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 125°C (Max) |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 10 V |
| Qualification | AEC-Q101 |
