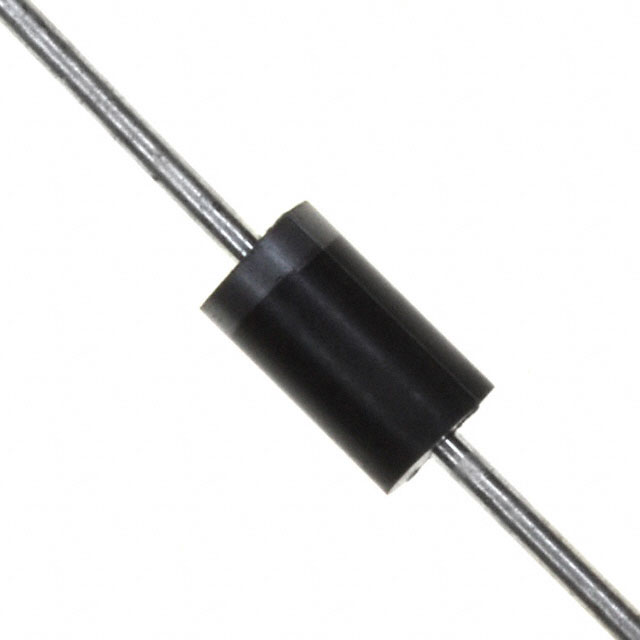

SB360-5300E3/73
DIODE SCHOTTKY 60V 3A DO201ADManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division SB360-5300E3-73 is a 3A Schottky diode with a 60V reverse voltage rating. This through-hole component features a DO-201AD axial package and operates across a temperature range of -65°C to 150°C. The forward voltage drop is a maximum of 680mV at 3A, with a reverse leakage current of 500µA at 60V. Its fast recovery characteristic, exceeding 200mA at Io, makes it suitable for applications in power supply rectification, voltage clamping, and reverse polarity protection within the automotive and industrial sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 3 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 60 V |
