RS2D-M3/52T
DIODE GEN PURP 200V 1.5A DO214AAManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

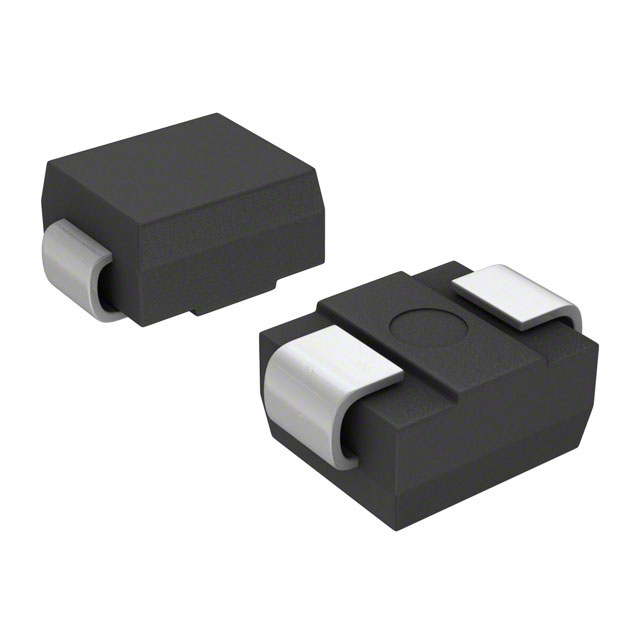

Diode 200 V 1.5A Surface Mount DO-214AA (SMB)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1.5A |
| Supplier Device Package | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
