P600J-E3/54
DIODE P600 600V 6A 175CManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

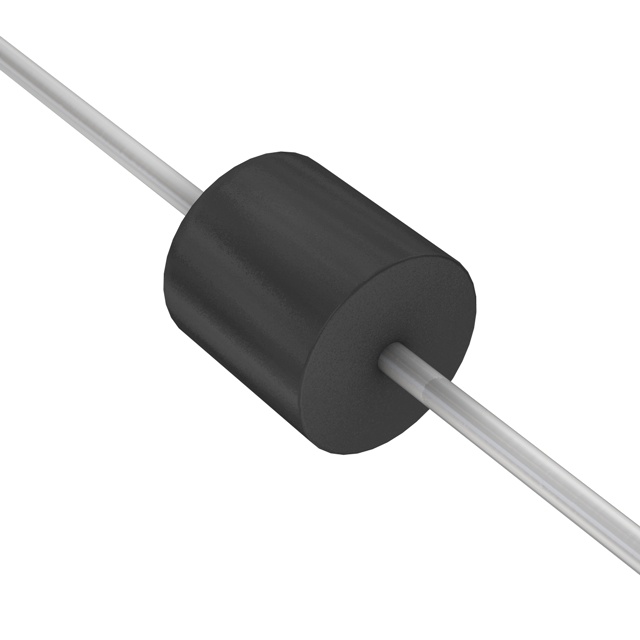

Diode 600 V 6A Through Hole P600
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | P600, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2.5 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 150pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 6A |
| Supplier Device Package | P600 |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 6 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
