MUR120/54
DIODE SUPERFAST DO41 200V 25NSManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

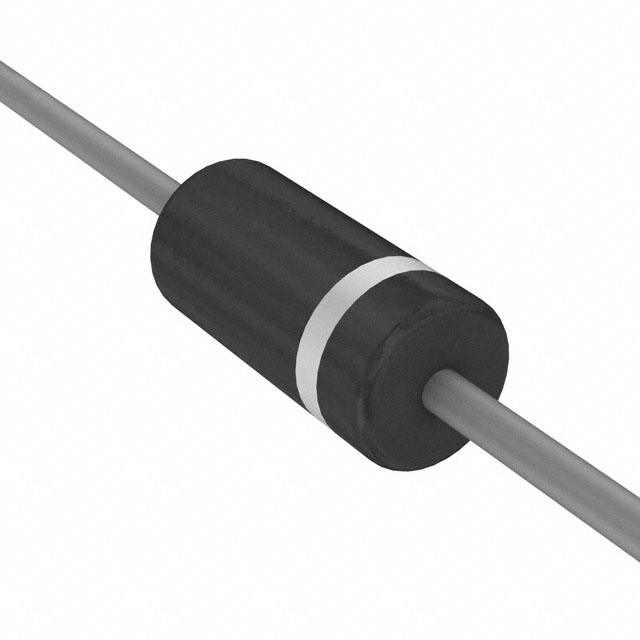

Vishay General Semiconductor - Diodes Division MUR120-54 is a 1A, 200V fast recovery rectifying diode. This axial leaded component, housed in a DO-204AC (DO-15) package, features a maximum forward voltage of 875mV at 1A and a reverse leakage of 2µA at 200V. With a reverse recovery time (trr) of 35ns, it is suitable for applications requiring efficient switching, such as power supplies, switch mode power supplies, and automotive electronics. The component operates across a junction temperature range of -65°C to 175°C and is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-204AC (DO-15) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 875 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 200 V |
