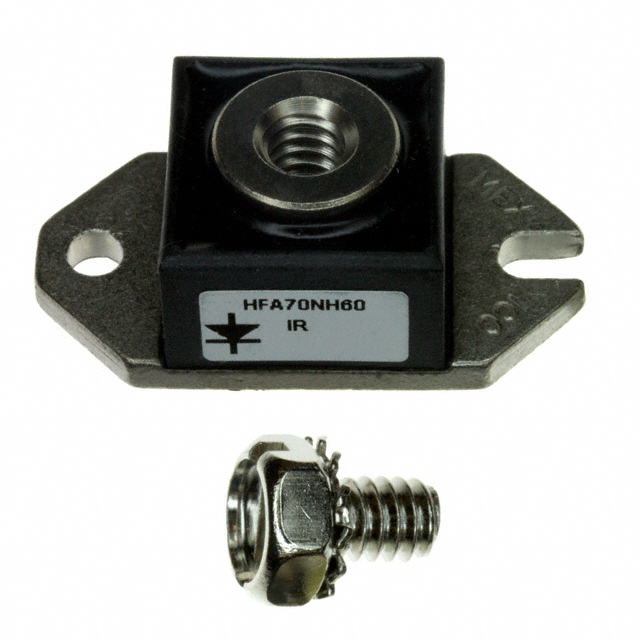

HFA70NH60
DIODE GEN PURP 600V 70A D-67Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division HEXFRED® series HFA70NH60 is a 600V, 70A general-purpose diode. This device features a maximum forward voltage (Vf) of 1.5V at 70A and a reverse leakage current of 20 µA at 600V. With a characteristic fast reverse recovery time (trr) of 120 ns, it is suitable for applications requiring efficient switching. The HFA70NH60 is housed in a D-67 HALF-PAK package for chassis mounting, facilitating robust thermal management. This diode finds application in power supply units, motor control, and industrial power conversion systems.
Additional Information
Series: HEXFRED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-67 HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 120 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 70A |
| Supplier Device Package | D-67 HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 70 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 600 V |
