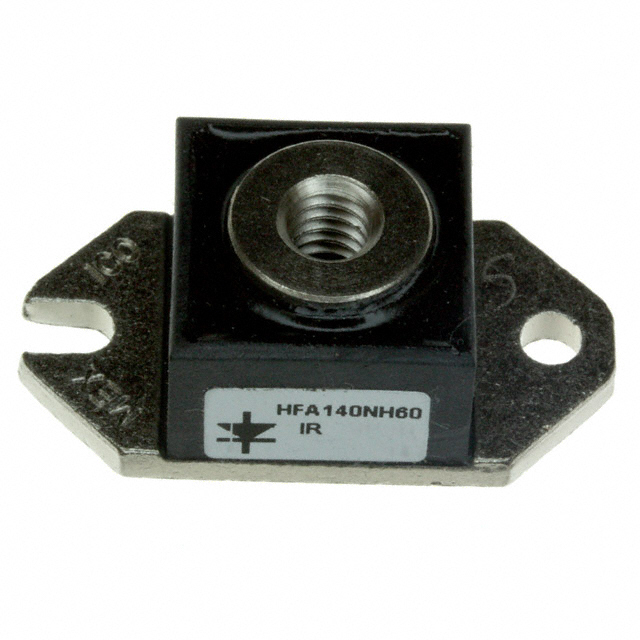

HFA140NH60
DIODE GEN PURP 600V 140A D-67Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division HEXFRED® series HFA140NH60 is a fast recovery diode with a maximum DC reverse voltage of 600 V and an average rectified forward current of 140 A. This component features a forward voltage drop of 1.6 V at 140 A and a reverse leakage current of 40 µA at 600 V. The reverse recovery time (trr) is 140 ns, classifying it as a fast recovery diode. Designed for chassis mounting, it is housed in a D-67 HALF-PAK package. This device is suitable for high-power applications in industries such as industrial motor drives and power supplies.
Additional Information
Series: HEXFRED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-67 HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 140 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 140A |
| Supplier Device Package | D-67 HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 140 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 600 V |
