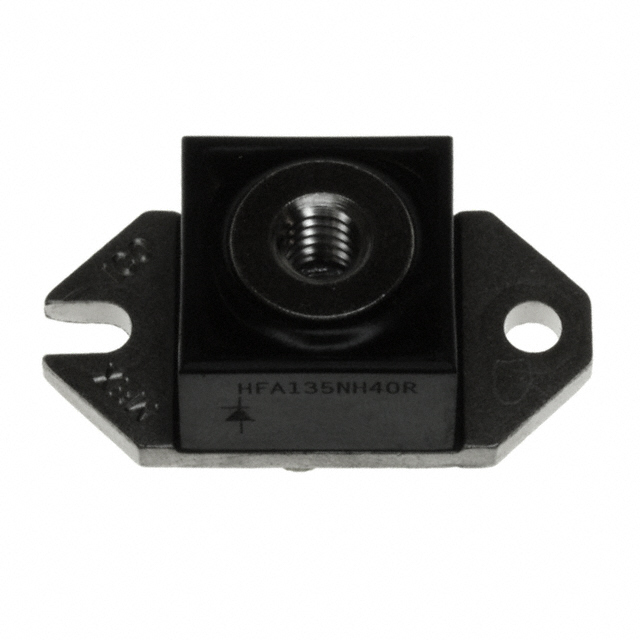

HFA135NH40R
DIODE GEN PURP 400V 135A D-67Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division HEXFRED® HFA135NH40R is a fast-recovery rectifier diode with a maximum repetitive reverse voltage of 400V and an average rectified forward current of 135A. Featuring a forward voltage drop of 1.3V at 135A and a reverse leakage of 9µA at 400V, this component has a reverse recovery time (trr) of 120ns. The HFA135NH40R is designed for chassis mounting in a D-67 HALF-PAK package. Its fast-switching characteristics make it suitable for high-power applications in industries such as industrial power supplies, electric vehicle charging, and renewable energy systems. The technology employed is standard, and the device is supplied in bulk packaging.
Additional Information
Series: HEXFRED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-67 HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 120 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 135A |
| Supplier Device Package | D-67 HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 135 A |
| Current - Reverse Leakage @ Vr | 9 µA @ 400 V |
