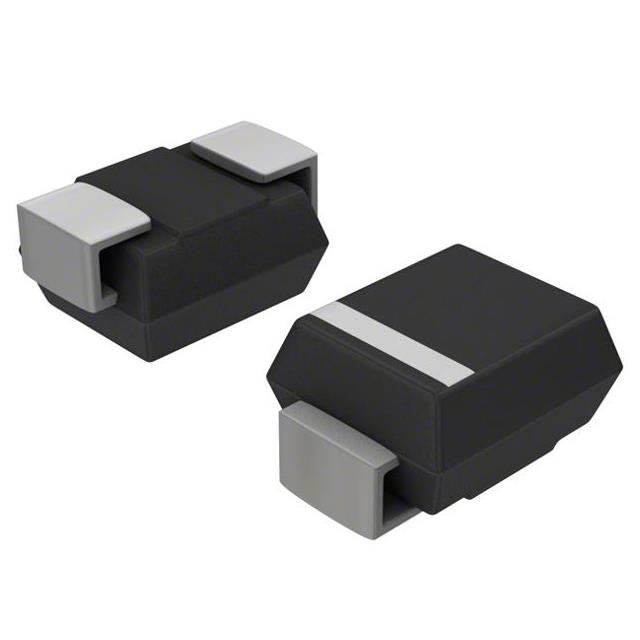

GF1MHE3/67A
DIODE GEN PURP 1KV 1A DO214BAManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division SUPERECTIFIER® GF1MHE3-67A is a general-purpose diode designed for demanding applications. This device features a 1000 V reverse voltage rating and a 1 A forward current capability. The DO-214BA (GF1) package facilitates efficient surface mounting. With a typical forward voltage drop of 1.2 V at 1 A, it offers low power dissipation. The leakage current at its maximum reverse voltage is specified at 5 µA @ 1000 V. This diode exhibits a standard recovery time of 2 µs, making it suitable for power supply rectification, switching power supplies, and general industrial applications requiring reliable rectification. Operating temperature ranges from -65°C to 175°C.
Additional Information
Series: Superectifier®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214BA |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-214BA (GF1) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
