EGF1THE3/5CA
DIODE GEN PURP 1.3KV 1A DO214BAManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

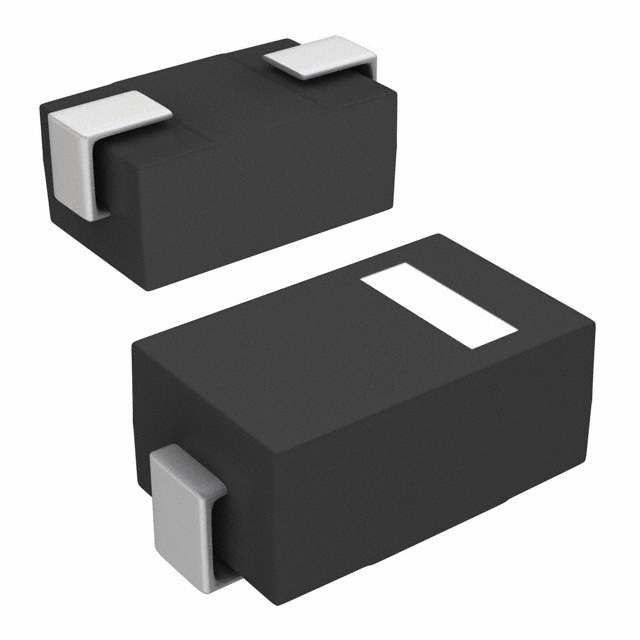

Vishay General Semiconductor - Diodes Division's Superectifier® series EGF1THE3-5CA is a general-purpose diode designed for demanding applications. This AEC-Q101 qualified component offers a maximum DC reverse voltage of 1300 V and an average rectified current of 1 A. Featuring a fast recovery time of 75 ns, it is suitable for applications requiring efficient rectification. The forward voltage drop is a maximum of 3 V at 1 A, with a low reverse leakage current of 5 µA at 1300 V. Housed in a DO-214BA (GF1) surface mount package and supplied on tape and reel, this diode operates across a wide junction temperature range of -55°C to 150°C. Its robust specifications make it ideal for use in automotive and industrial power supply designs.
Additional Information
Series: Superectifier®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214BA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-214BA (GF1) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 1300 V |
| Voltage - Forward (Vf) (Max) @ If | 3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1300 V |
| Qualification | AEC-Q101 |
