BAT165-HG3/H
DIODE SCHOTTKY 40V 500MA DO219ACManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More

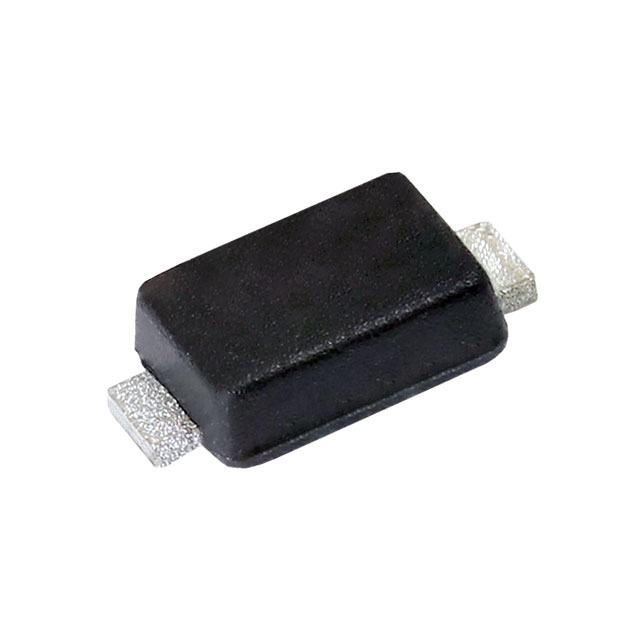

Diode 40 V 500mA Surface Mount DO-219AC (microSMF)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-219AC |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 8.4pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | DO-219AC (microSMF) |
| Operating Temperature - Junction | 150°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 540 mV @ 250 mA |
| Current - Reverse Leakage @ Vr | 8 µA @ 40 V |
| Qualification | AEC-Q101 |
