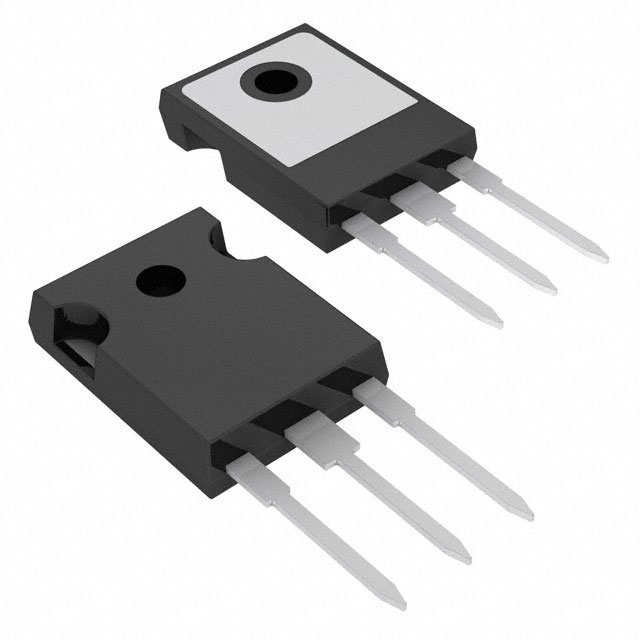

80EPS12
DIODE GEN PURP 1.2KV 80A TO247ACManufacturer: Vishay General Semiconductor - Diodes Division
Categories: Single Diodes
Quality Control: Learn More
80EPS12 is a high-quality electronic component designed for professional applications. This part offers reliable performance and meets industry standards for electronic design projects.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 80A |
| Supplier Device Package | TO-247AC |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.17 V @ 80 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
