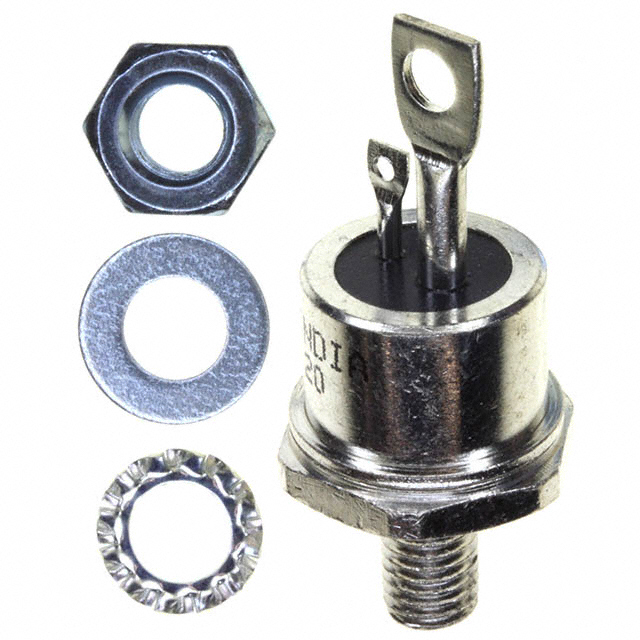

VS-50RIA120S90
SCR 1.2KV 80A TO208ACManufacturer: Vishay General Semiconductor - Diodes Division
Categories: SCRs
Quality Control: Learn More
SCR 1.2 kV 80 A Standard Recovery Chassis, Stud Mount TO-208AC (TO-65)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-208AC, TO-65-3, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1200A, 1255A |
| Current - On State (It (AV)) (Max) | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 15 mA |
| Supplier Device Package | TO-208AC (TO-65) |
| Current - On State (It (RMS)) (Max) | 80 A |
| Voltage - Off State | 1.2 kV |
