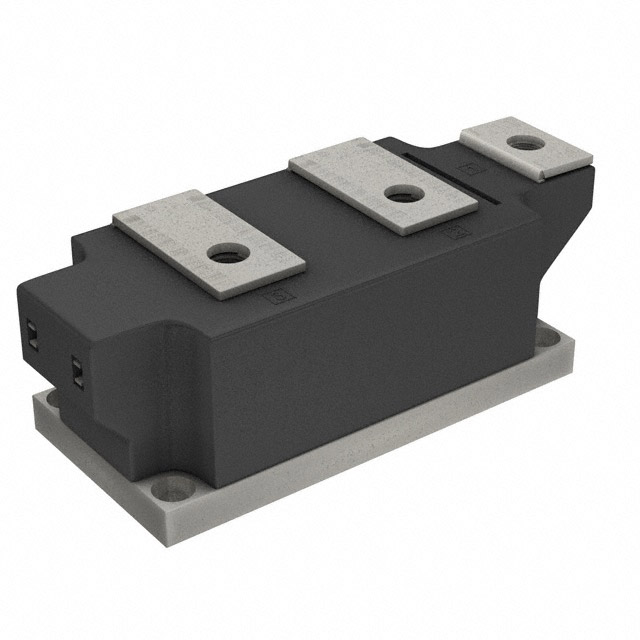

VSKT500-12
SCR DBL 2SCR 1200V 500A MAGNAPAKManufacturer: Vishay General Semiconductor - Diodes Division
Categories: SCRs - Modules
Quality Control: Learn More
VSKT500-12 is a high-quality electronic component designed for professional applications. This part offers reliable performance and meets industry standards for electronic design projects.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SUPER MAGN-A-PAK |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17800A, 18700A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 785 A |
| Voltage - Off State | 1.2 kV |
