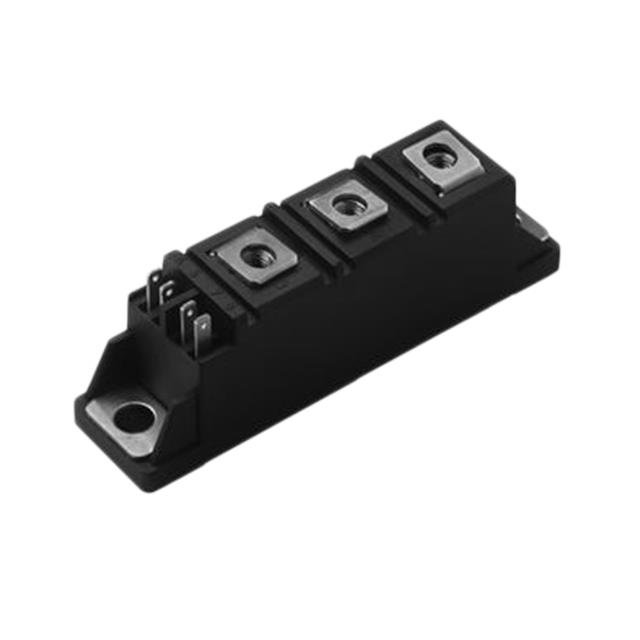

VS-VSKU91/08
MODULE THYRISTOR 95A ADD-A-PAKManufacturer: Vishay General Semiconductor - Diodes Division
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 800 V 150 A Common Cathode - All SCRs Chassis Mount ADD-A-PAK (3 + 4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | ADD-A-PAK (3 + 4) |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Common Cathode - All SCRs |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2000A, 2094A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 95 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 150 A |
| Voltage - Off State | 800 V |
