IRKL56/04A

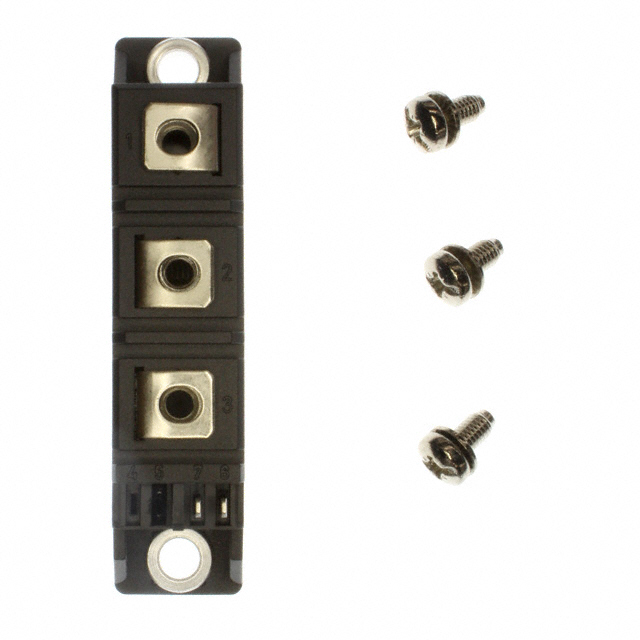

SCR DBL HISCR 400V 60A ADDAPAKManufacturer: Vishay General Semiconductor - Diodes Division
Categories: SCRs - Modules
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division's IRKL56-04A is a high-performance SCR module designed for demanding power control applications. This module features a series connection of one SCR and one diode within an ADD-A-PAK package, facilitating efficient chassis mounting. It offers a forward blocking voltage of 400V and a substantial on-state current capability of 60A average (135A RMS). With a gate trigger current (Igt) of 150 mA and a gate trigger voltage (Vgt) of 2.5V, precise control is achievable. The module exhibits a holding current (Ih) of 200 mA and a non-repetitive surge current rating of 1310A/1370A at 50Hz/60Hz. Operating across a temperature range of -40°C to 125°C (TJ), the IRKL56-04A is suitable for power supplies, motor drives, and industrial automation systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | ADD-A-PAK (3 + 2) |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1310A, 1370A |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 60 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 135 A |
| Voltage - Off State | 400 V |
