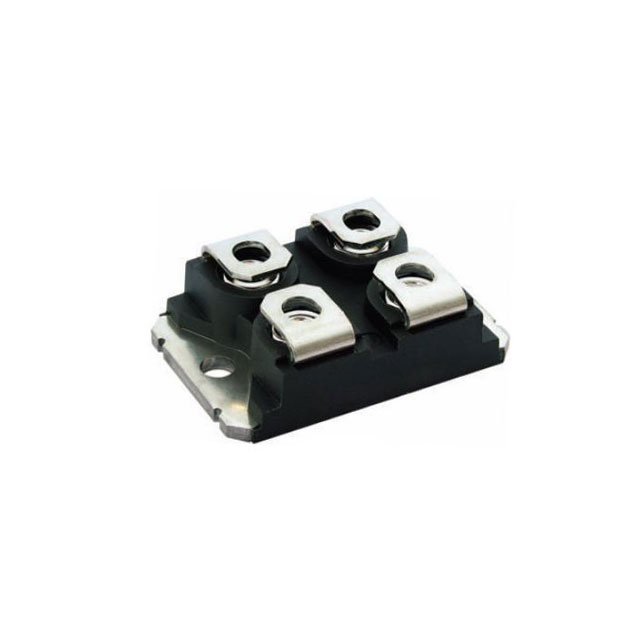

VS-GP250SA60S
IGBT MOD 600V 380A 893W SOT227Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-GP250SA60S is a single IGBT module featuring Trench PT technology. This SOT-227 package component offers a 600 V collector-emitter breakdown voltage and supports a continuous collector current of up to 380 A. The module dissipates a maximum power of 893 W and exhibits a Vce(on) of 1.3 V at 15 V Vge and 100 A Ic. With a compact miniBLOC design suitable for chassis mounting, it operates across a temperature range of -40°C to 150°C. The VS-GP250SA60S is commonly utilized in industrial applications such as motor drives, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.3V @ 15V, 100A |
| NTC Thermistor | No |
| Supplier Device Package | SOT-227 |
| IGBT Type | PT, Trench |
| Current - Collector (Ic) (Max) | 380 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 893 W |
| Current - Collector Cutoff (Max) | 100 µA |
Request a Quote
