VS-GB90DA60U

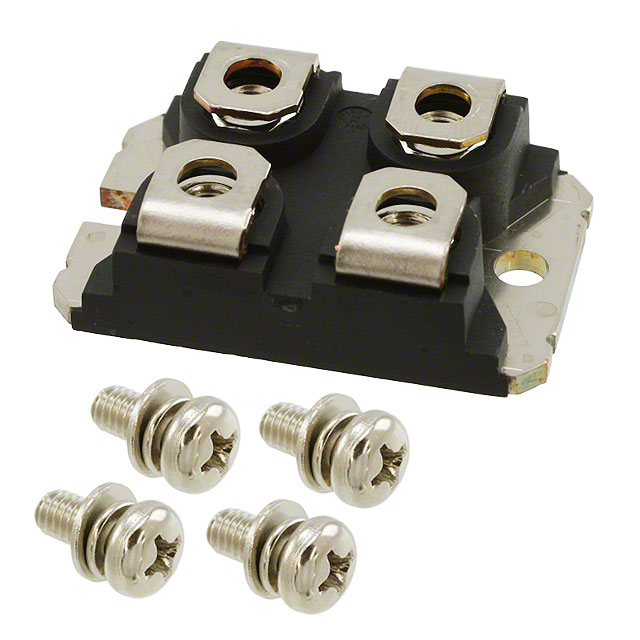

IGBT MOD 600V 147A 625W SOT227Manufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-GB90DA60U is a 600V, 147A NPT IGBT module designed for high-power applications. This single-configuration module features a maximum power dissipation of 625W and a low collector-emitter saturation voltage of 2.8V at 15V gate-emitter voltage and 100A collector current. The SOT-227 package facilitates efficient chassis mounting and thermal management. Its robust construction and operating temperature range of -40°C to 150°C make it suitable for demanding industrial power, motor drive, and renewable energy systems. The VS-GB90DA60U exhibits a collector cutoff current of 100µA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 100A |
| NTC Thermistor | No |
| Supplier Device Package | SOT-227 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 147 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 625 W |
| Current - Collector Cutoff (Max) | 100 µA |
