VS-ETF150Y65U

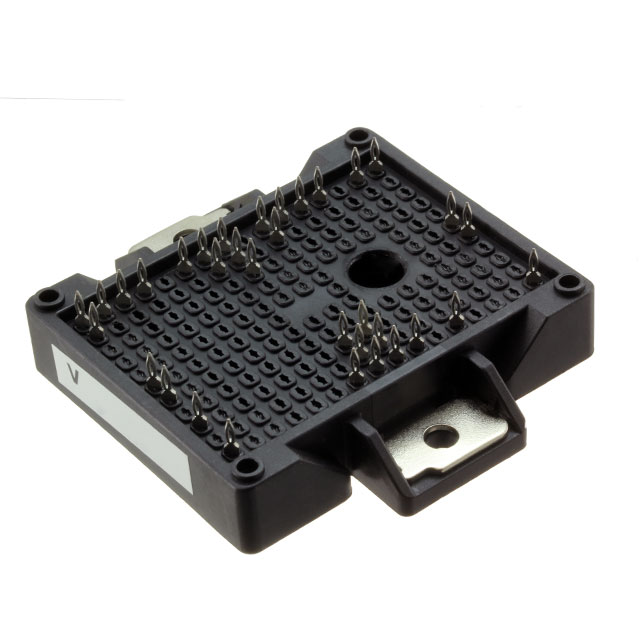

IGBT MOD 650V 142A EMIPAK-2BManufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
Vishay General Semiconductor - Diodes Division VS-ETF150Y65U is a Trench IGBT Module designed for three-level inverter configurations. This module features a 650V collector-emitter breakdown voltage and a continuous collector current capability of 142A at 100A with a Vce(on) of 2.06V. The module delivers a maximum power dissipation of 417W and operates at a junction temperature up to 175°C. Its EMIPAK-2B chassis mount package facilitates efficient thermal management. Input capacitance (Cies) is 6.6 nF at 30V. This component is suitable for applications in industrial motor drives and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | EMIPAK-2B |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.06V @ 15V, 100A |
| NTC Thermistor | No |
| Supplier Device Package | EMIPAK-2B |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 142 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Power - Max | 417 W |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 6.6 nF @ 30 V |
