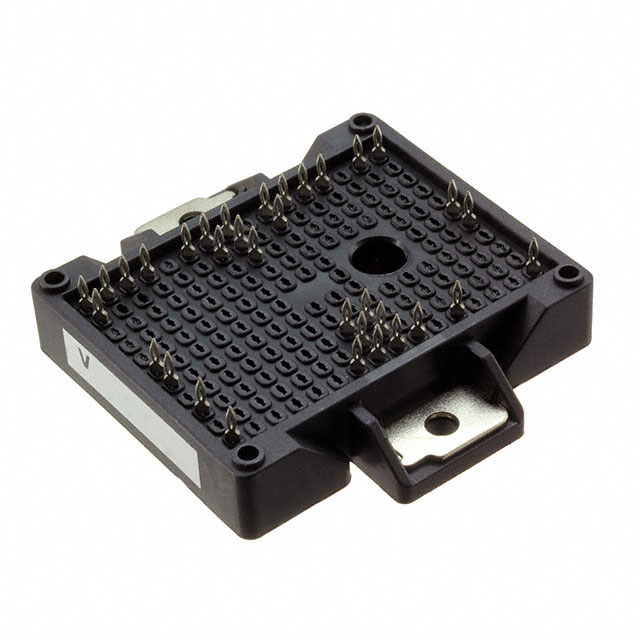

VS-ETF075Y60U
IGBT MOD 600V 109A EMIPAK-2BManufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
VS-ETF075Y60U is a high-quality electronic component designed for professional applications. This part offers reliable performance and meets industry standards for electronic design projects.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | EMIPAK-2B |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.93V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | EMIPAK-2B |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 294 W |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 4.44 nF @ 30 V |
