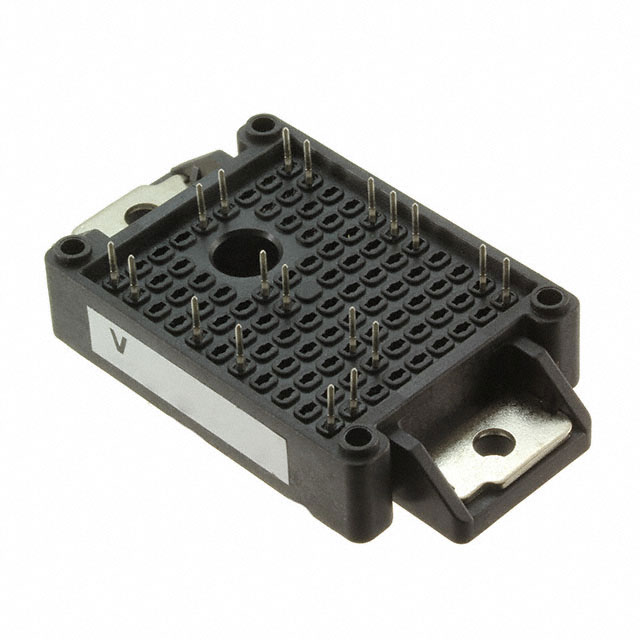

VS-ENQ030L120S
IGBT MOD 1200V 61A EMIPAK-1BManufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Trench Three Level Inverter 1200 V 61 A 216 W Chassis Mount EMIPAK-1B
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | EMIPAK-1B |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.52V @ 15V, 30A |
| NTC Thermistor | Yes |
| Supplier Device Package | EMIPAK-1B |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 61 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 216 W |
| Current - Collector Cutoff (Max) | 230 µA |
| Input Capacitance (Cies) @ Vce | 3.34 nF @ 30 V |
