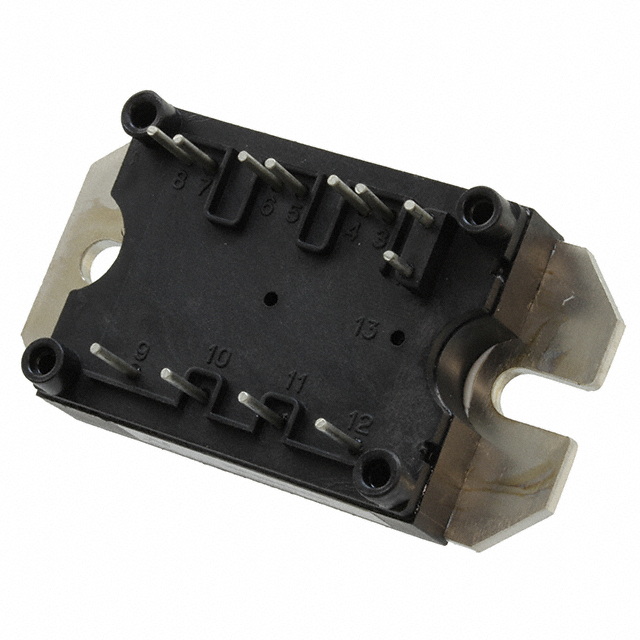

VS-50MT060WHTAPBF
IGBT MODULE 600V 114A 658W MTPManufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
VS-50MT060WHTAPBF is a high-quality electronic component designed for professional applications. This part offers reliable performance and meets industry standards for electronic design projects.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 12-MTP Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 100A |
| NTC Thermistor | No |
| Supplier Device Package | MTP |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 114 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 658 W |
| Current - Collector Cutoff (Max) | 400 µA |
| Input Capacitance (Cies) @ Vce | 7.1 nF @ 30 V |
