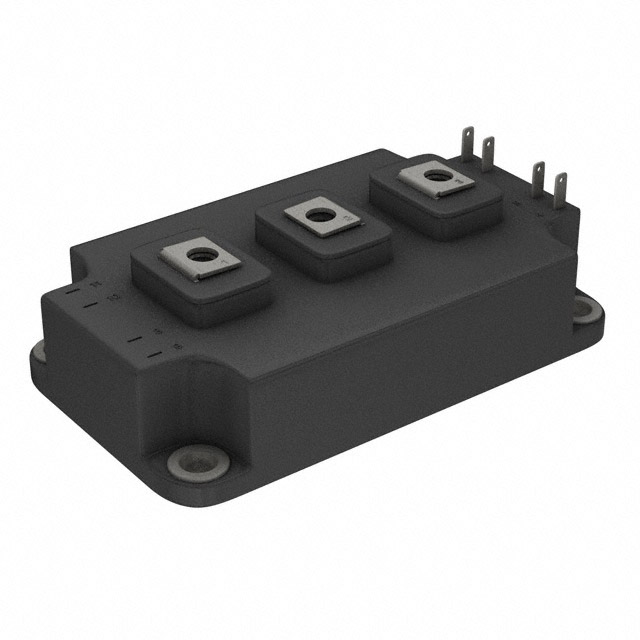

GA400TD25S
IGBT MOD 250V 400A INT-A-PAKManufacturer: Vishay General Semiconductor - Diodes Division
Categories: IGBT Modules
Quality Control: Learn More
GA400TD25S is a high-quality electronic component designed for professional applications. This part offers reliable performance and meets industry standards for electronic design projects.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Dual INT-A-PAK (3 + 8) |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 400A |
| NTC Thermistor | No |
| Supplier Device Package | Dual INT-A-PAK |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 250 V |
| Power - Max | 1350 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 36 nF @ 30 V |
